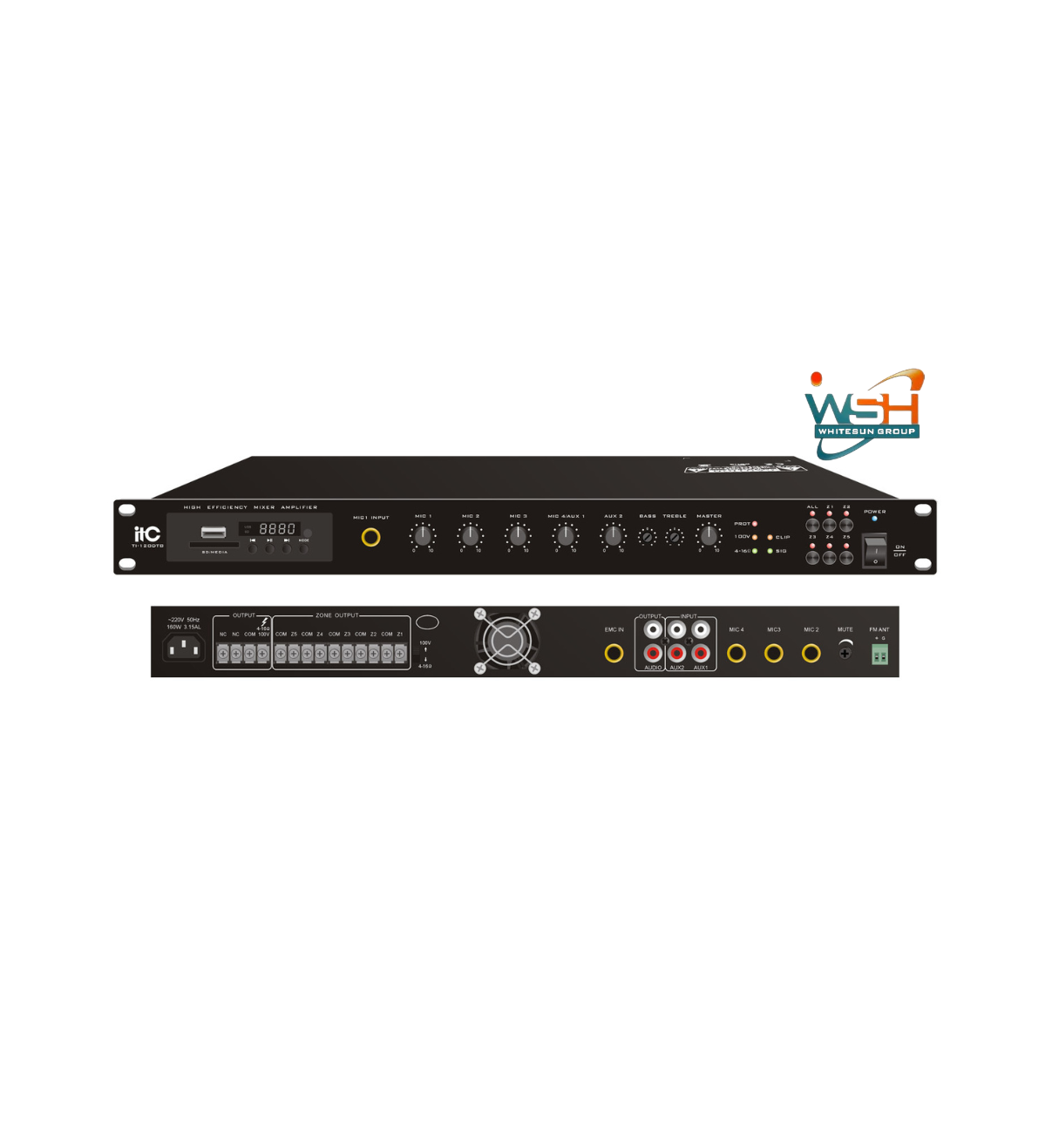

TI-120DTB 5 Zones Digital Mixer Amplifier with Mp3/TUNER/Bluetooth(Phone Jack Mic Input)

Description

Ideal for small & medium supermarkets, malls, and indoor places like cafe shop to play background musics.
. Standard rack mounted design(1U) with delicate SMT technology.
. Support mp3 / TUNER / Bluetooth remote control function, the remote control distance can reach 8 meters.
. With USB interface and SD card interface, integrated MP3 playback module, with automatic priority playback audio function, digital screen can display the currently playing track of USB.
. Integrated Bluetooth module, support music play via Bluetooth mobile phone.
. Integrated TUNER module with FM radio antenna port.
. 1 EMC inputs, 2 AUX inputs, 4 MIC inputs.
. Channel priority function EMC> MIC1> MIC2, MIC3, AUX1, AUX2.
. Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.
. Supports 5 zones outputs, each partition has a separate key and level indication, and the entire area can be set with one key.
. The machine is equipped with level indication, overload and protection indicators.
. The device has good self-protection such as short circuit, overload, and overheating.
.2 kinds of output methods: 100V, 4-16Ω.
.The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy energy-saving and ultra-stable design of Class D digital power amplifiers.
.Wide range voltage power supply: 220V-240V can work normally.

Specifications:
Model:TI-120DTB
Output:4-16Ω, 100V
Output Power:120W
Input Sensitivity & Impedance;
:MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector
:AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector
:EMC Input: 775mV/10KΩ Unbalanced 6.3 connector
Output Sensitivity & Soure Impedance:MIX OUT:1000mV/470Ω Unbalanced RCA connector
Tone:Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
Frequency Response:50~16KHz(+1dB,-3dB)
S/N Rate:MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD:Less than 0.5%(at 1KHz,1/3 Rated Power)
Mute Function:EMC>MIC1>MIC2, MIC3, AUX1, AUX2
Capacity:5 Zones
Channel Crosstalk :≥50dB
Heat Dissipation:The fan starts work when powered on. Winds flank in and out
from the back, can lead to strong cooling effect.
with infinitely variable speed.
Protection:Short circuit, overload and overheat
Power Supply:~220-240V /50Hz
Power Consumption:160W
Dimension:484×260×44mm
Weight:3.7Kg
