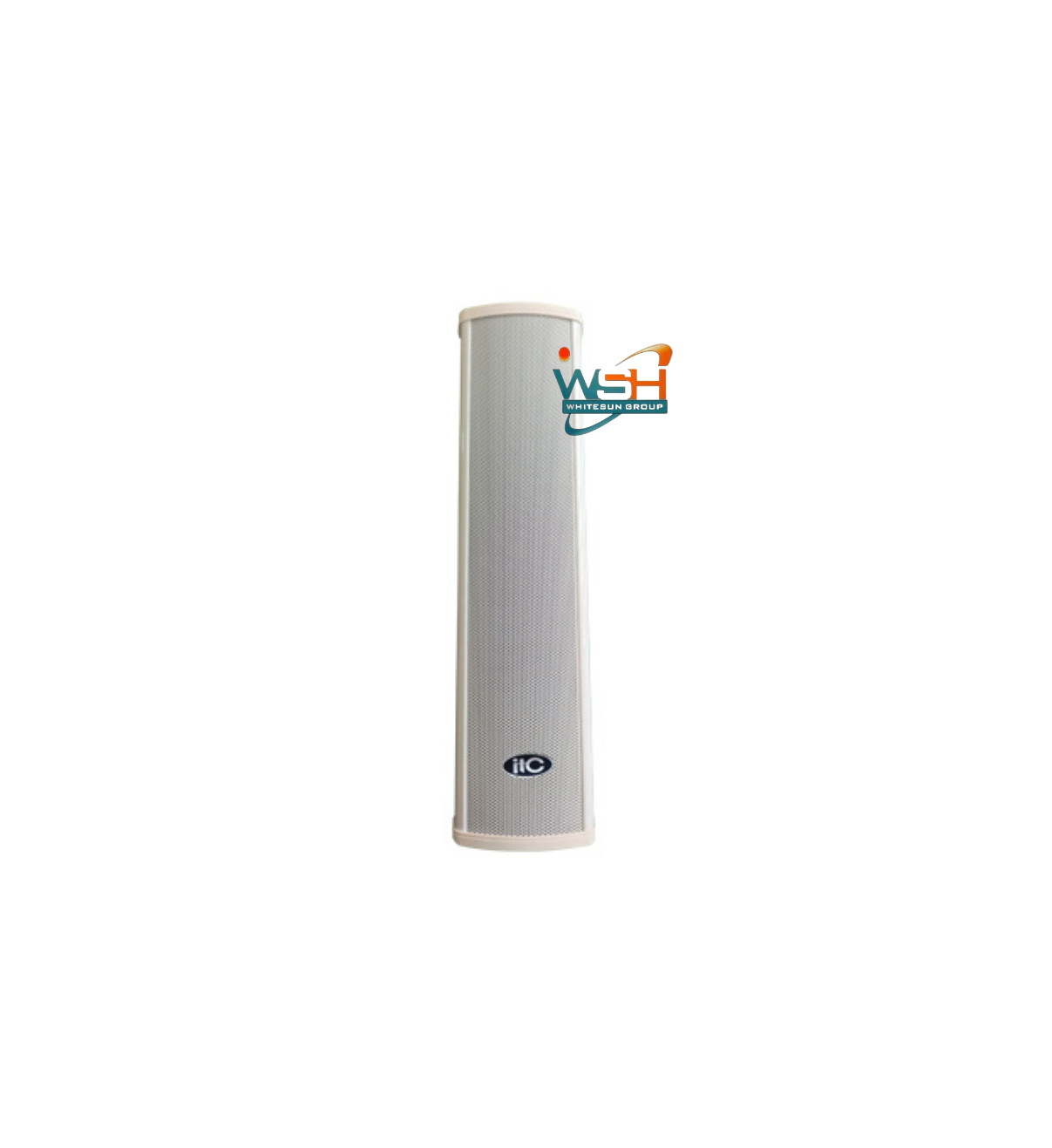

T-703A Outdoor Column Speaker

Description

1. Outdoor waterproof column speaker, streamlined design, beautiful and fashionable.

2. The shell is made of one-piece thickened aluminum alloy, which can effectively reduce the resonance of the cabinet when the sound pressure is high, and the surface adopts outdoor powder spraying process to prolong the service life.

3. The mesh cover is made of aluminum alloy, one-piece stamping, and covered with high acoustic sponge, further improving the waterproof performance and increasing the service life.

4. Using four 2.5-inch full-range speaker units, bearing high power, low distortion, excellent vocal performance.

5. Built-in high-performance 100V audio transformer, which can reduce the loss in the circuit due to impedance.

6. Using high-quality wires, it can be used at full load for a long time, with good anti-scald and conductivity capabilities, safe to use.;

7. L-shaped bracket design, convenient and flexible adjustment scheduling, user-friendly operation and installation debugging.

Application:
Large squares, playgrounds, parks, railways, etc.

Specification：
Rated power (100V)
15W, 30W

Rated power (70V)
7.5W, 15W

Sensitivity
91dB±3dB

Impedance
Black: COM; White: 670Ω; Green: 330Ω

Frequency response
80Hz-20kHz

Dimension
105×75×410mm

Speaker unit
2.5″×4

IP level
IP66

Weight
2.1kg
