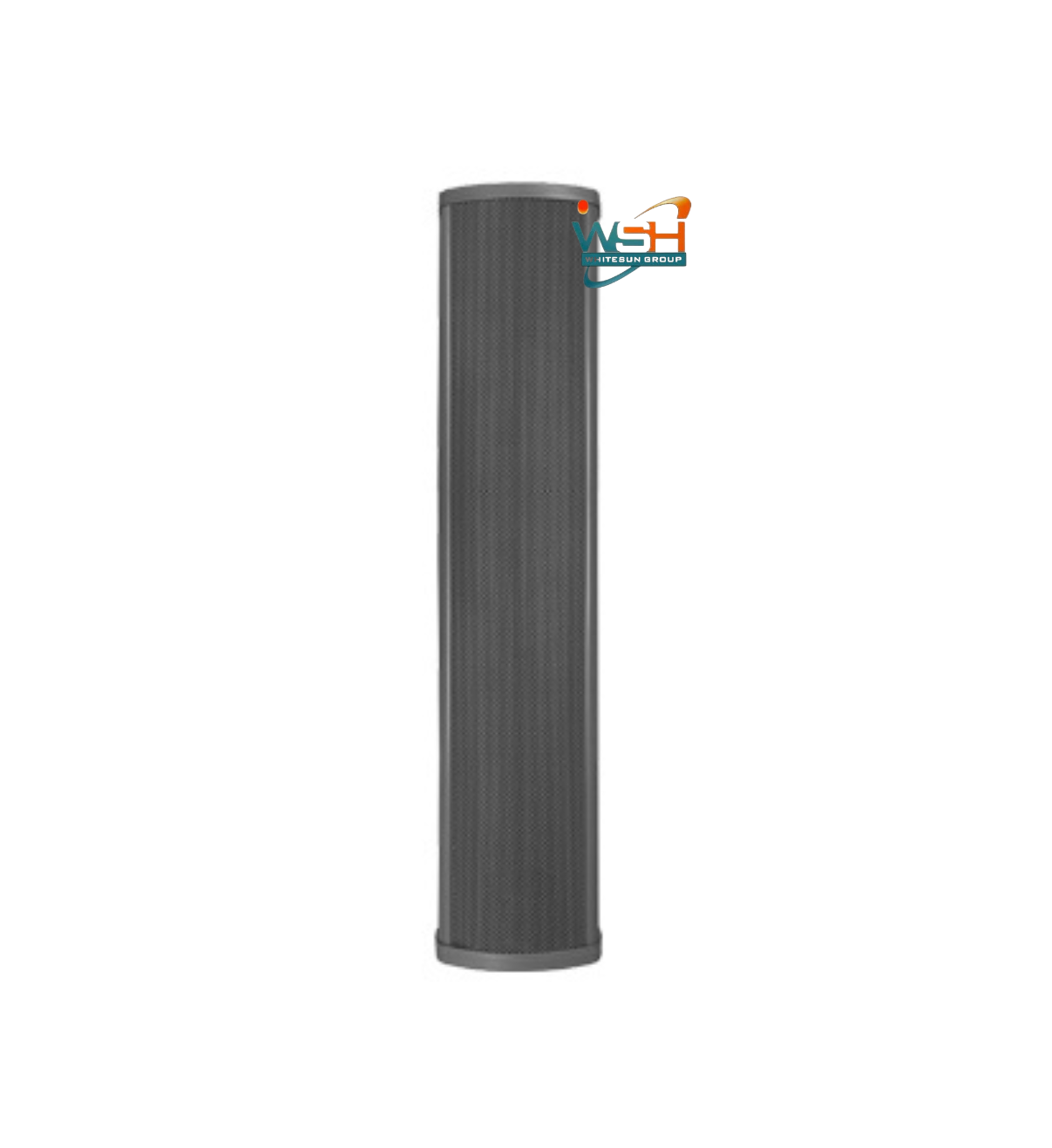

PT-204A Column Speaker
Description
Suitable for outdoor places such as schools, playgrounds, squares, parks, communities and background music system applications .
Features：
. The outer shell is made of aluminum alloy and aluminum mesh cover, with outdoor anti-rust spraying technology. It is not easy to rust after years of use. A waterproof net is added inside to ensure all-weather outdoor use .
. Built-in 6 large magnetic steel 2.5-inch full-range speaker units to improve the sound effects of mid-high frequencies, making the mid-high frequencies clearer and brighter .
. Built-in high-performance 70V/100V audio transformer can reduce the loss caused by impedance in the circuit .
. Comes with a mounting bracket that allows for horizontal or vertical adjustment of the angle .
Specifications：
Rated power (100V)
20W,40W
Rated power (70V)
10W,20W
Impedance
Black: COM White: 500Ω Green: 250Ω
Frequency response (-10dB)
100-16kHz
Sensitivity (±3dB)
92dB
Maximum sound pressure level (rated/peak)
108dB/114dB
Speaker unit
2.5″×6
Dimensions (WxDxH )
105×75×550mm
Protection class
IP66
Weight
2.8kg
