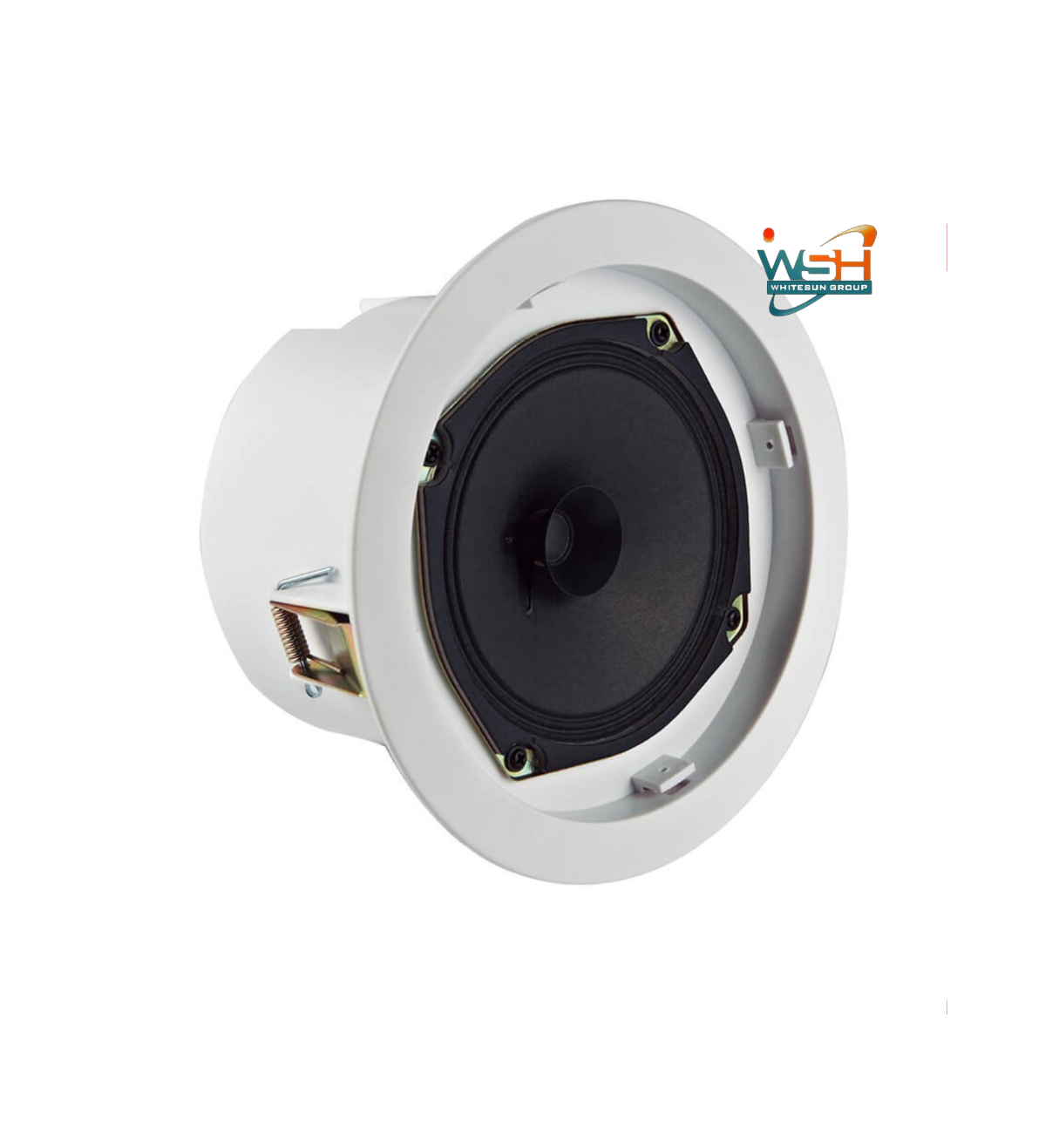

ITC – T-105F, Sealing Speaker, 5″
Description
The T-10 5F is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

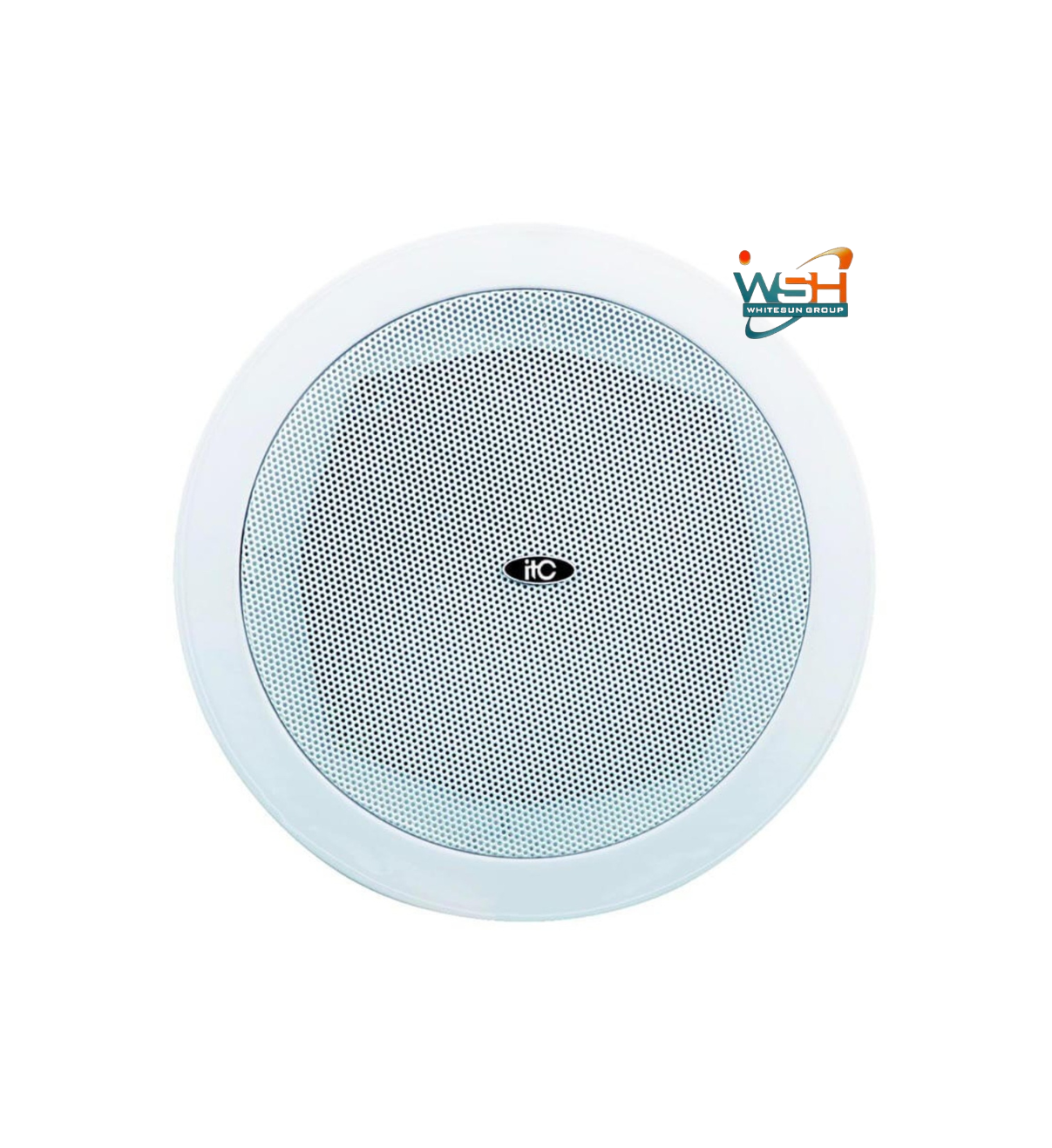

The built-in 5 ” speaker driver is designed of wide frequency response 100-16KHz, the multiple power taps 3W & 5W are helpful for different applications varies from room size and ambient noise surroundings. The Aluminum grille, ABS baffle and ABS back cover are painted in attractive white color.

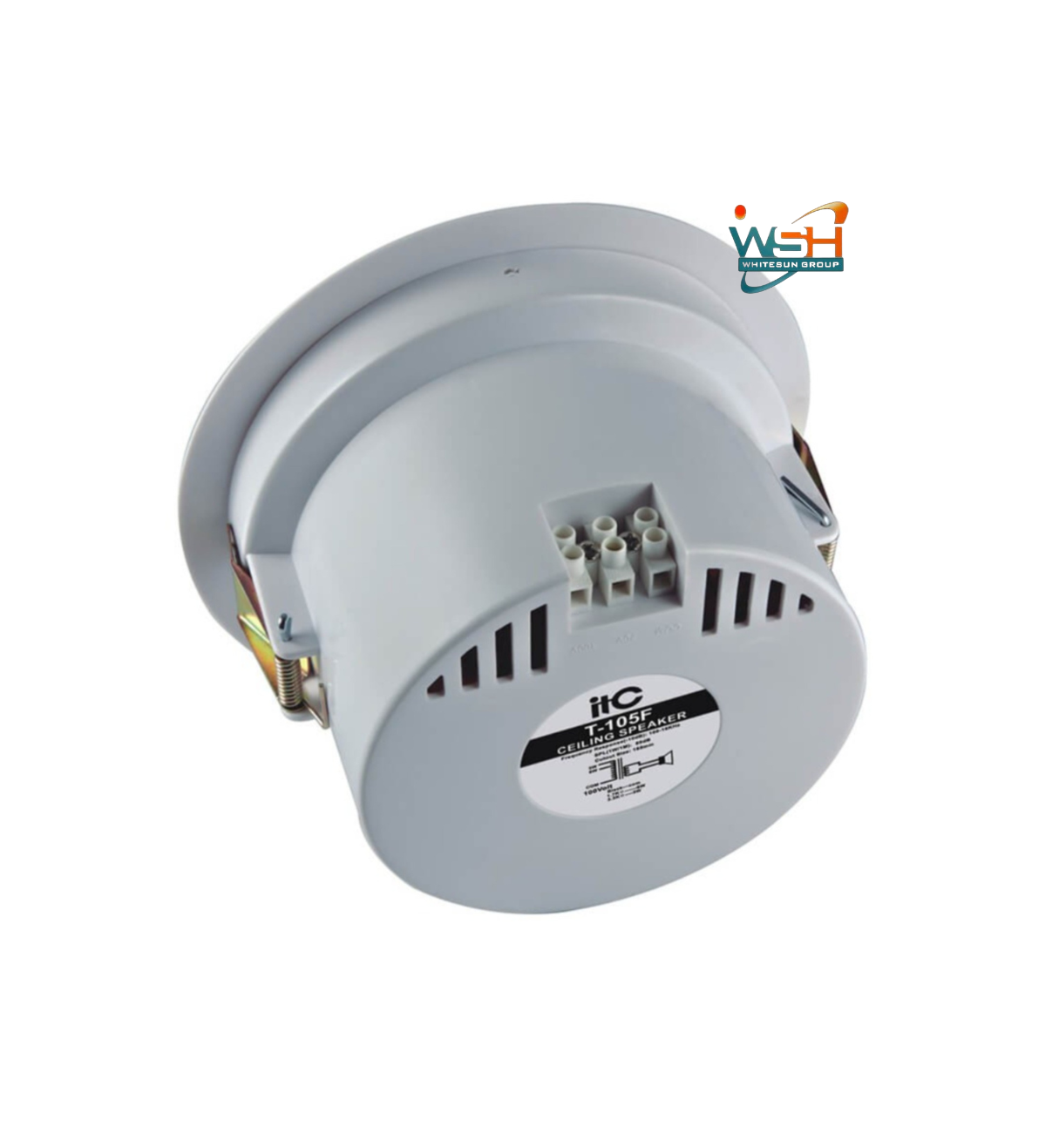

Its spring clip clamp makes the easy and secure installation.
Characteristics
– Model T-105F
– Power Taps @100V 3W, 6W
– Power Taps @70V1.5W, 3W
– Impedance Com/ 3.3KΩ/ 1.7KΩ
– SPL (1W/1M) 89dB
– Max. SPL (Rated W/1M) 96dB
Specifications
– Finish Baffle: Steel ,white Grille: Steel ,white
– Speaker Driver5″ x 1
– Cutout Size 165mm
– Dimensions 180 x 102mm
– Weight 0.7Kg
– Mounting Flush-mount dog ears
