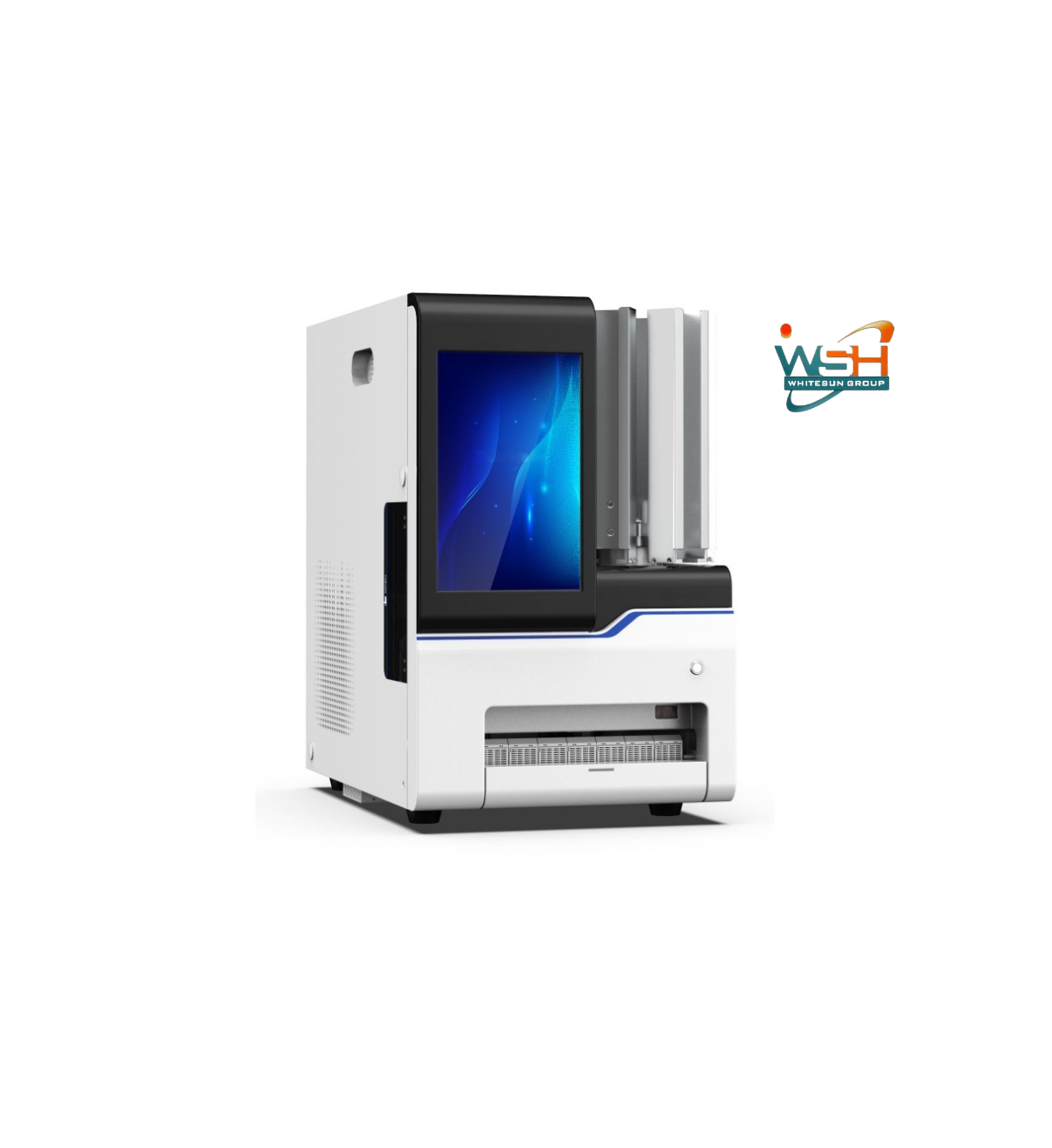

CP-UC06 Cassette Printer
Description
1. High printing speed, 2.5-4 seconds per cassette;
2. Non contact UV laser technology;
3. 10 inches LED touch screen via built-in software, also support to connect external PC;
4. Fully compatible with LIS/HIS system;
5. Built in bar-code scanner, and support to connect external scanners;
6. Two working modes: Single output and batch outputs;
7. Compatible with various models of embedding cassettes on the markets.
8.Recommended service life: 8 years
Main Technical Data:
Printing technology：UV Laser marking
Print speed：2.5-4 seconds/cassette
Print resolution：2500 dpi
Cassette type：Cassette with lid (one-piece or two pieces);
Cassette without lid
Loading hopper：6
Max Capacity Per Loading hopper：100 cassettes without lid or with lid assembled
Compatible system：Open to connect HIS/LIS systems
Dimension LxWxH;486mmx313mmx497mm
Weight：37kg
Power requirement：100-240 V AC, 50/60 Hz, 300W
Other configuration：1. 10 inches touch screen
2. Excellent ability to export number, letters,1D & 2D codes, graphics;
3. Software driver;
4. Port to adaptable to various HIS/LIS system connection;
5. Stable drive system for more durable application.
Package Info:
Each instrument packed in carton
Dimensions: 710*425*620mm
Gross Weight: 49.5kg
