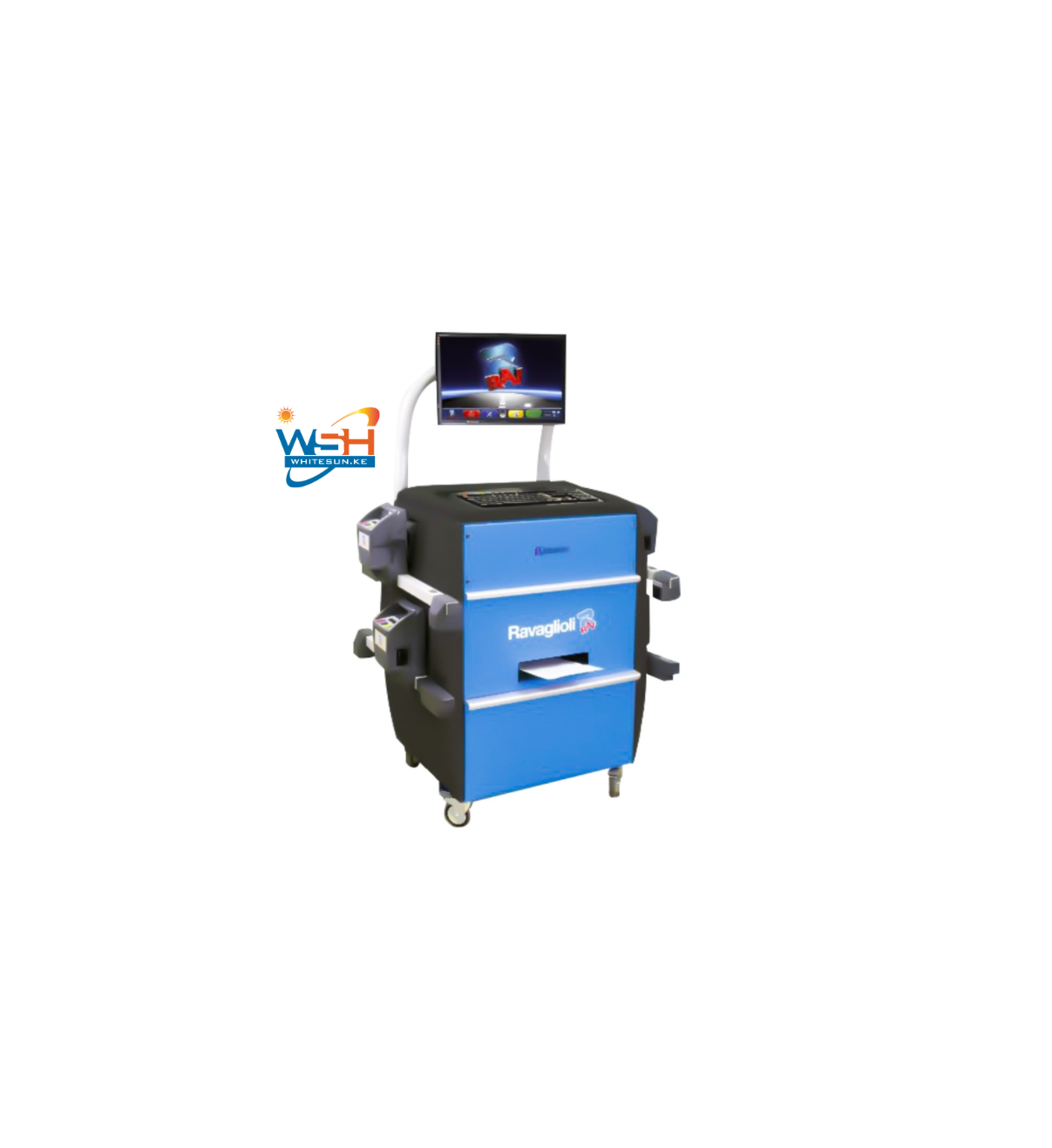

WIRELESS WHEEL ALIGNER TD 1780WS
WSG 9011
Product Details
Technical data
Accuracy
Measuring Range
Total Measuring Range
Front Axle
Total toe
+/-2′
+/-2○
+/-20○
Partial toe
+/-1′
+/-1○
+/-20○
Set-back
+/-2′
+/-2○
+/-5○
Camber
+/-2′
+/-3○
+/-10○
Caster
+/-5′
+/-10○
+/-18○
King-pin
+/-5′
+/-10○
+/-18○
Rear Axle
Total toe
+/-2′
+/-2○
+/-20○
Partial toe
+/-1′
+/-1○
+/-20○
Set-back (S 178WS)
+/-2′
+/-2○
+/-5○
Camber
+/-2′
+/-3○
+/-10○
Thrust angle
+/-2′
+/-2○
+/-5○
Related products

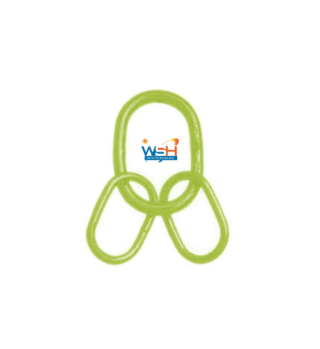

Master Link With Sublinks MT
Read moreWSG -9082 MASTER LINK WITH SUBLINKS MT CODE ITEM CODE WLL TONNES Z100905 MT-13-10 17 Z100906 MT-16-10 28 Z101074 MT-20-10 35 Z101281 MT-22-10 53

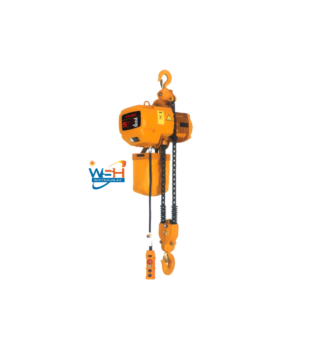

HHB SERIES ELECTRIC CHAIN HOIST WITHOUT TROLLEY
Read moreWSG 9071 Description HHB SERIES ELECTRIC CHAIN HOIST WITHOUT TROLLEY, GALV. LOAD CHAIN (Complete with chain bag) CODE MODEL CAPACITY (TON) LIFTING HEIGHT (MTR) CHAIN SIZE (MM) NO.OF FALLS LIFTING SPEED (M/MIN) 9283 1T x 12M 1 12 7.1MM SINGLE FALL 1 6.6 9284 2T x 12M 2 12 10MM SINGLE FALL 1 6.6 9285 …

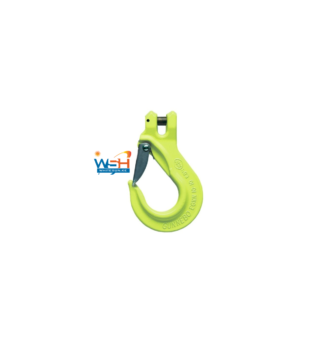

Clevis Sling Hook EGKN With Latch
