HSH-616 Lever Block

WSG 9010

Product Details

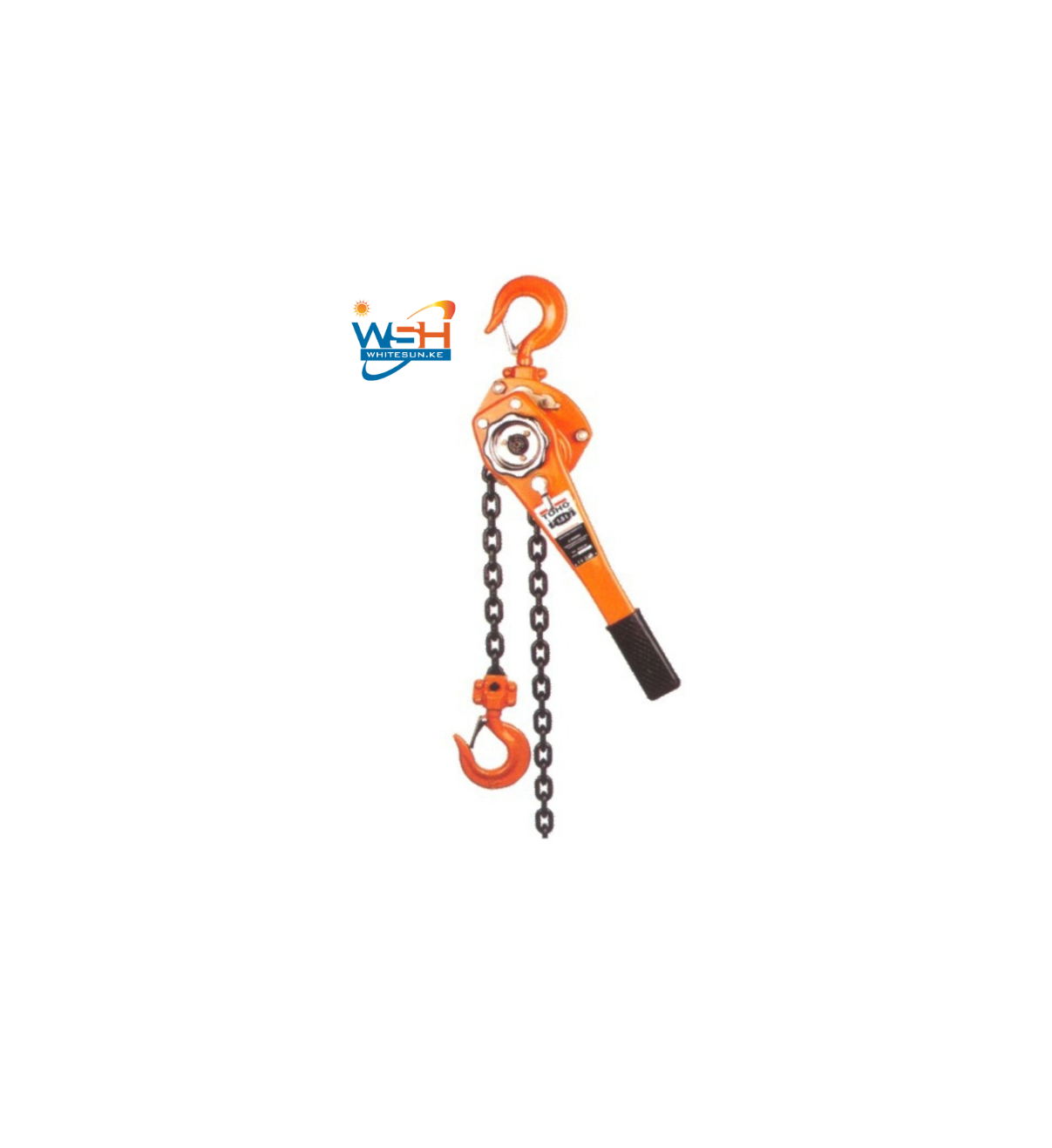

The HSH-616 Lever Block is a high-quality lifting device designed for industrial applications. It features a strong and durable steel construction, with a compact and ergonomic handle for easy operation. This lever block has a capacity of up to 3 tons, making it ideal for heavy lifting tasks. The HSH-616 Lever Block lever hoist is ideal for lifting, pulling and positioning heavy loads in narrow spaces. Its compact and lightweight design makes it easy to transport and store. The hoist also features a hardened steel load chain and hooks that are designed to withstand harsh industrial environments.

Description
Model HSH616-0.75 HSH616-1.5 HSH616-3 HSH616-6 HSH616-9
Capacity tons 0.75 1.5 3 6 9
Standard Lift m 1.5 1.5 1.5 1.5 1.5
Running test load KN 11.2 22.5 45 75 112.5
Effort required to lift rated load N 140 220 320 340 360
Strands of load chain
1 1 1 2 3
Diameter of load chain mm 6 8 10 10 10
Dimensions
A 145 175 195 195 195
B 86 100 115 115 115
C 134 150 190 242 307
D 38 48 50 65 81
H 340 380 490 620 700
L 285 410 410 410 410
K 27 36 38 48 54
Net weight kg 9.5 11.5 18.5 27.5 46
Packing measurement cm 37.5X16X16 52X17X22 55X18.5X22.5 57X21X23 60X42X28
Extra weight per metre of extra lift kg 0.8 1.4 2.2 4.4 6.6
