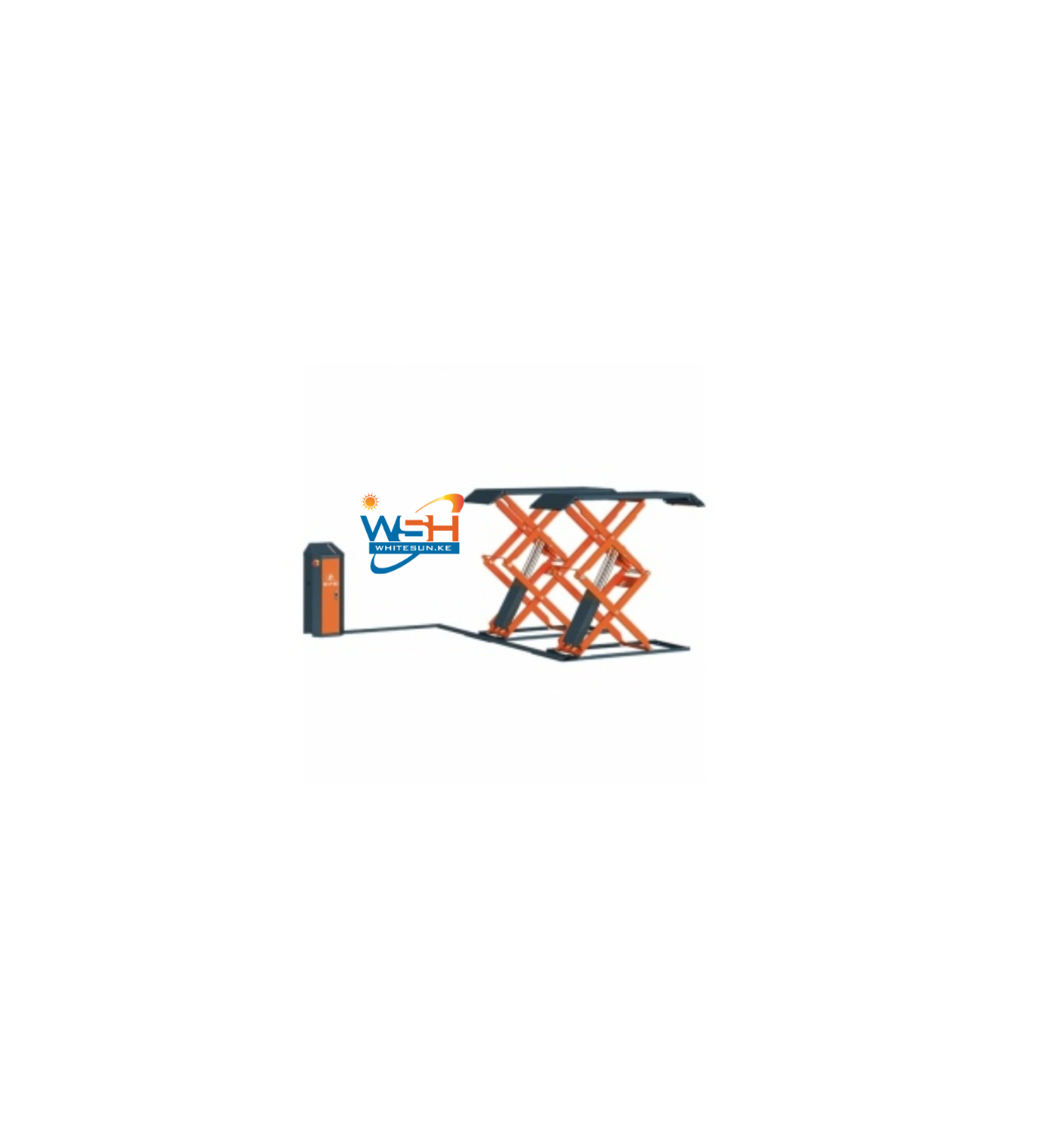

Full Rise Scissor Lift
WSG 8995
Product Details
Lifting capacity 3000/4000 kg
Max lifting height 1850mm
Min height 330mm
Lifting time 50S-60S
Motor 2.2kW/3.5kW
Air supply 6-8bar
Platform width 550mm
Weight 800kg
Description
3000kg lifting capacity.
Above-ground or recessed installation.
110mm initial height.
Infrared synchronization protection system.
Four cylinder design
Pneumatic safety locking system
Drive-on ramps lock into position as platform extensions.
Steady raising and lowering, no noise when lowered to ground.
