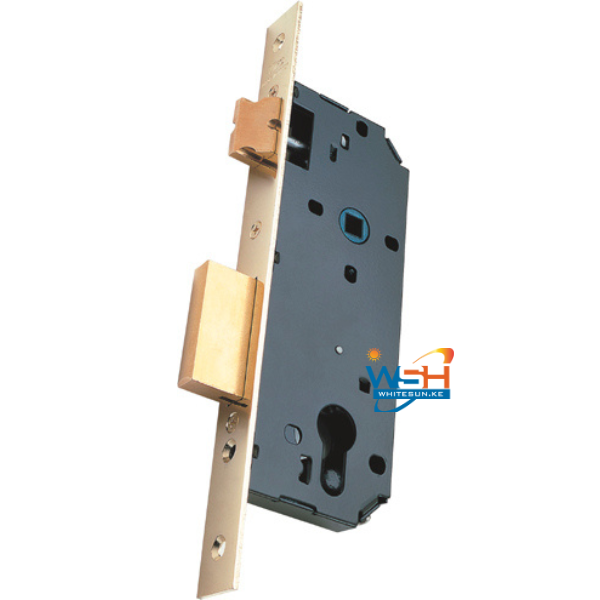

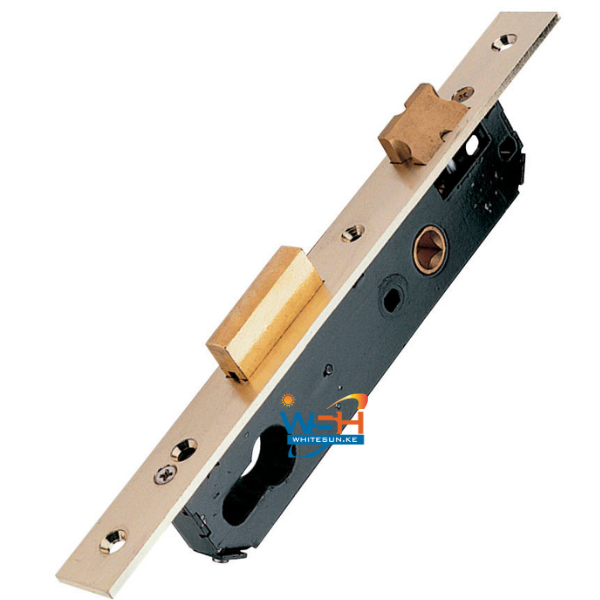

VLML-03 VIRO 2L M/L WITH BRASS HANDLE ‘5005’

VLML-03 VIRO 2L M/L WITH BRASS HANDLE ‘5005’

DESCRIPTION:

• Case:
  painted steel completely closed case. DIN standard through holes for insertion of security escutcheons.
• Standard latch and dead-bolt:
  solid brass both in the brass and the steel versions (except the dead-bolt for the 20/25/30 backsets). Latch reversible with a simple movement.
  • brass version: with standard latch (for maximum security);
  • steel version: with standard or double-edged latch (the double-edged latch centers itself according to the striking plate, making the lock easier to install).
• Mechanism:
  • 85 mm centre distance;
  • 8 mm handle hole;
  • double throw for 35 to 70 mm backsets;
  • single throw for 20 to 35 mm backsets (35 mm backset with both single and double throws for steel versions with square corners).
• Plate and striking:
  steel (7435 series) or brass (on request). Removable and replaceable plate. Striking plates with square corners and jamb protection fin.
• Supplied with:
  fixing screws for the lock and fixing screw for the cylinder.
• Packaging:
  single box.
