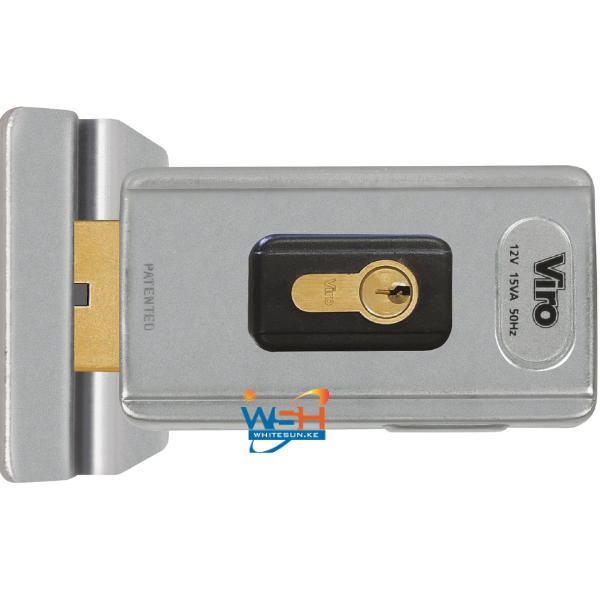

Viro V06 Universal Electric Lock 7918

Viro V06 Universal Electric Lock 7918

DESCRIPTION/ KEY FEATURES:

• Entry 70 mm
• Vertical or horizontal installation
• Service function (standard): with the electric impulse the lock prepares itself for opening and resets only after the door / gate has been opened and closed; it is therefore also suitable in the presence of door closers and / or automatisms of any type
• Safety function (selectable by manually removing a particular interior): opening occurs only if, simultaneously with the electrical impulse, manual or automatic pressure is exerted on the gate; it is therefore not recommended to use it in the presence of door closers and / or unsuitable automatisms
• Double replaceable coil, which distributes the load evenly and guarantees great reliability over time
• Standard voltage 12 VAC
• Monobloc case in galvanized steel
• Cover in galvanized steel
• Rotating deadbolt in solid brass with nylon insert that makes closing more silent
• Prepared for double or half profile cylinder (not supplied)
• Ground striker in galvanized steel, to be cemented to the ground or welded to the lower frame of the gate

Included:

• Ground meeting in galvanized steel
• Nylon cap and ring
• Passivated steel support for profile cylinder
• Fixing screws
