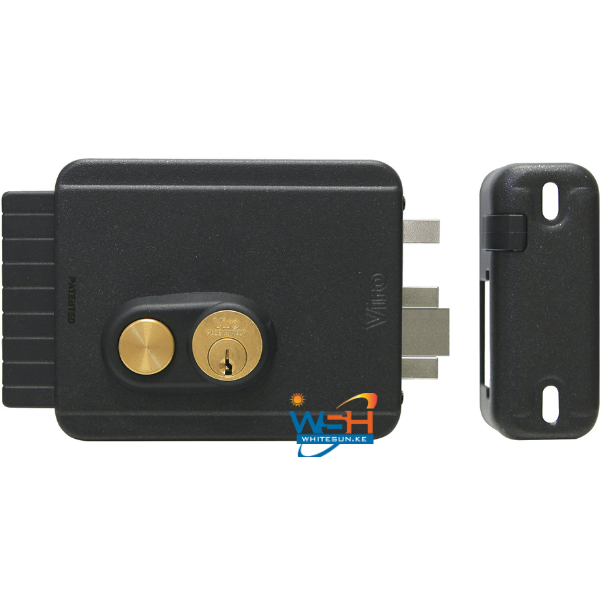

VIRO 7972 ELECTRIC RIM LOCK

VIRO 7972 ELECTRIC RIM LOCK

DESCRIPTION:

• Installation:
  horizontal.
• Backset:
  adjustable 50-60-70-80 mm, by means of a simple operation with the Allen key supplied.
• Double replaceable coil:
  which distributes the load uniformly and ensures a long working life.
• Voltage:
  Standard 12v AC
• Case:
  one-piece galvanized and anthracite metallic painted steel.
• Cover:
  galvanized and anthracite metallic painted steel.
• Handle:
  nylon, and nylon cylinder/push button ring nut.
• Latch:
  solid nickel-plated brass, self-locking with the device locked.
• Dead-bolt:
  solid nickel-plated brass, single throw with 20 mm projection at the centre of the latch.
• Ejector:
  nickel-plated steel, separate from the latch to ensure the correct working of the lock even if there is vertical adjustment between the lock and the striker (caused by weather changes).
• Push button:
  brass.

  Mechanism:

  • if the dead-bolt is inserted, the lock can only be opened with the key;
  • brass pins;
  • mushroom brass counterpins, pick-resistant;
  • phosphor bronze pin springs.
• Striker:
  steel, adjustable height to compensate for any vertical adjustment between the lock and the striker. Self-lubricating nylon support in contact with the ejector.
• Supplied with:
  striker, brass cylinder ring nut (for versions with loose external cylinder), oval brass escutcheon (for versions with fixed external cylinder), Allen key for backset adjustment and fixing screws.
• Packaging:
  single box.
• Keys:

Supplied with 3 viro  profile nickel plated brass keys.
