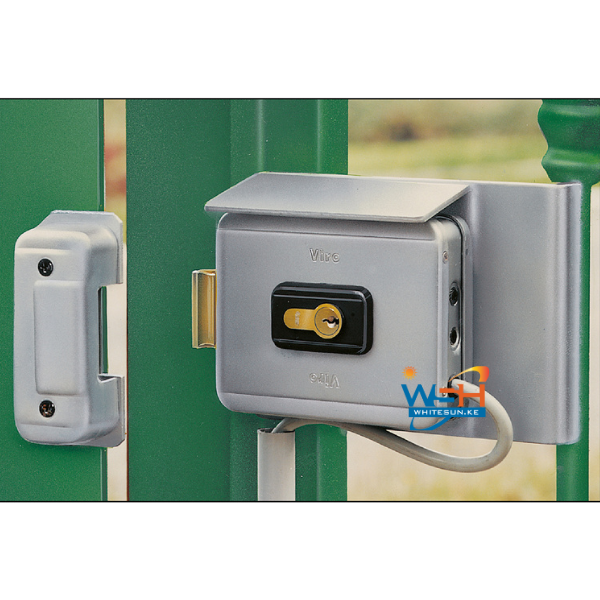

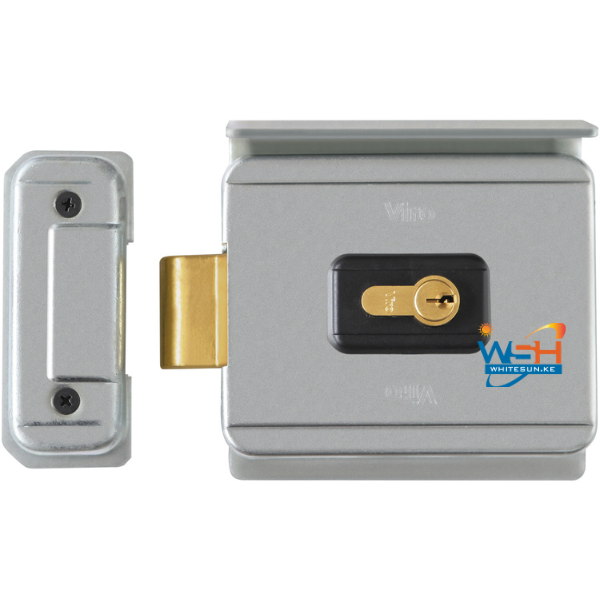

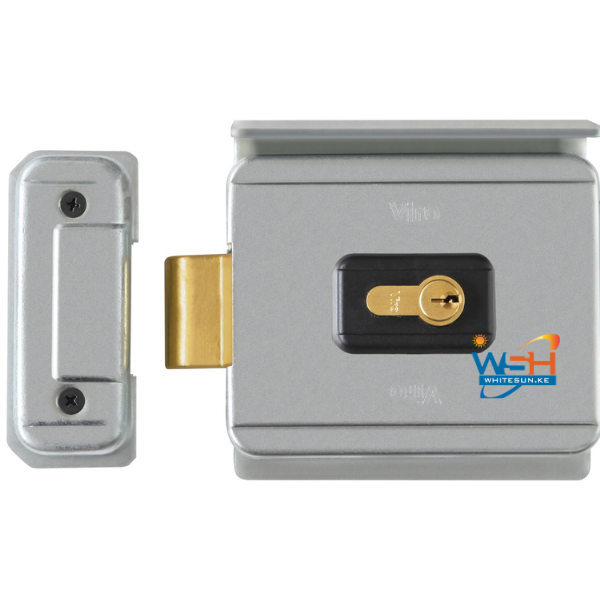

7928 V90 ELECTRIC LOCK OUTWARD OPENING DOOR VIRO

7928 V90 ELECTRIC LOCK OUTWARD OPENING DOOR VIRO

DESCRIPTION:

• Installation:
  vertical or horizontal.
• Backset:
  70 mm.
• Service function:
  the lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. It is therefore suitable for use with doorclosers and/or all types of automation systems.
• Double replaceable coil:
  which distributes the load uniformly and ensures a long working life.
• Voltage:
  Standard 12v AC (on request 12V DC; 24V AC or DC)
• Case:
  one-piece galvanized steel.
• Cover:
  galvanized steel.
• Rotating dead-bolt
  solid brass.
• Cylinder:
  set up for double or half profile cylinders (not provided).
• Striker:
  galvanized steel, to ensure the correct working of the lock even if there is vertical adjustment between the lock and the striker (caused by weather changes).
• Supplied with:
  • for horizontal installation: striker , galvanized steel roof-plate and striker plate;
  • for vertical installation: galvanized steel floor striker , galvanized steel roof-plate ; nylon ring nut and plug, passivated steel support for profile cylinder and fixing screws.
