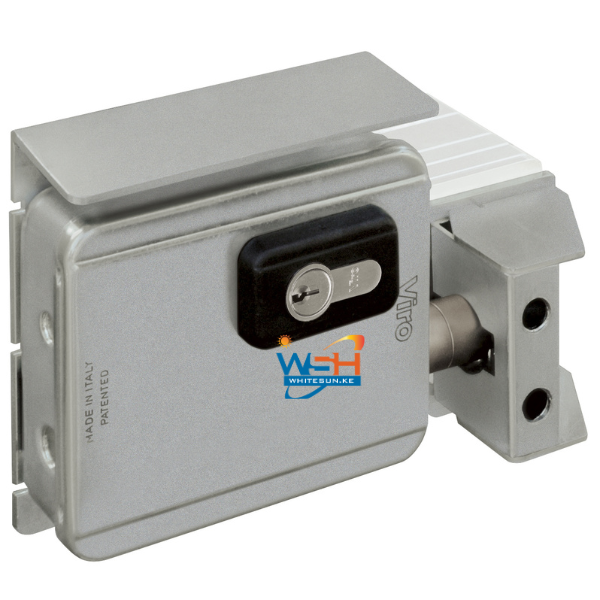

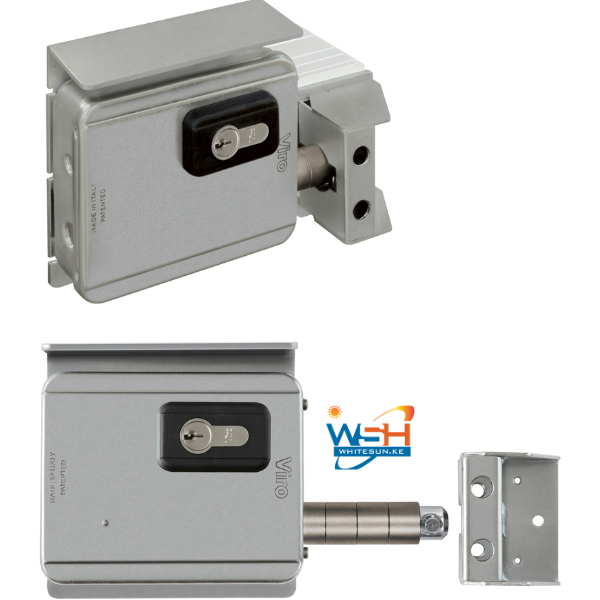

7905 V09 ROTATING SPIKE ELECTRIC LOCK FOR SLIDING GATE

7905 V09 ROTATING SPIKE ELECTRIC LOCK FOR SLIDING GATE

DESCRIPTION:

V09 electric lock is the only extremely high-reliability lock specially designed for use on outdoor, manual or automated sliding gates.

The special spike mechanism will tolerate a thermal expansion in the dimensions of sliding gates of up to 9.6 mm A thermal expansion of 9.6 mm is the equivalent to a change in temperature of 100° C for a gate which is 8 metres long. Also suitable for manual sliding gates

KEY FEATURES;

• Installation:

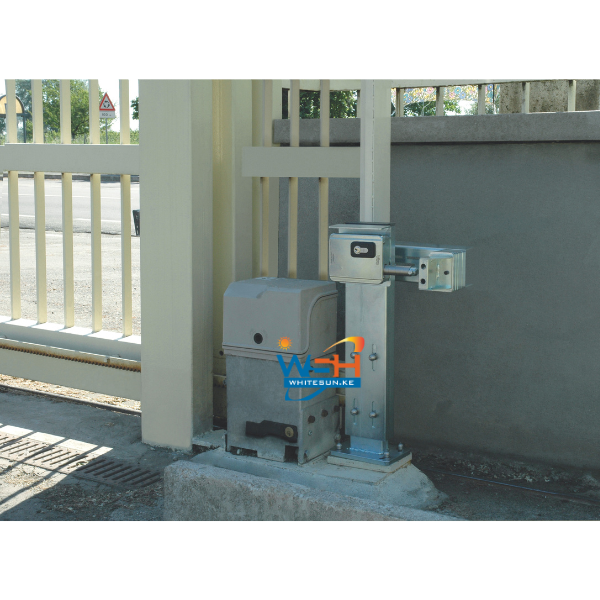

  horizontal on the fixed upright of the sliding gate; or vertical, with accessories, on the inside of the sectional door and motorised shutters.
• Backset:
  50 mm.
• Opening impulse time:

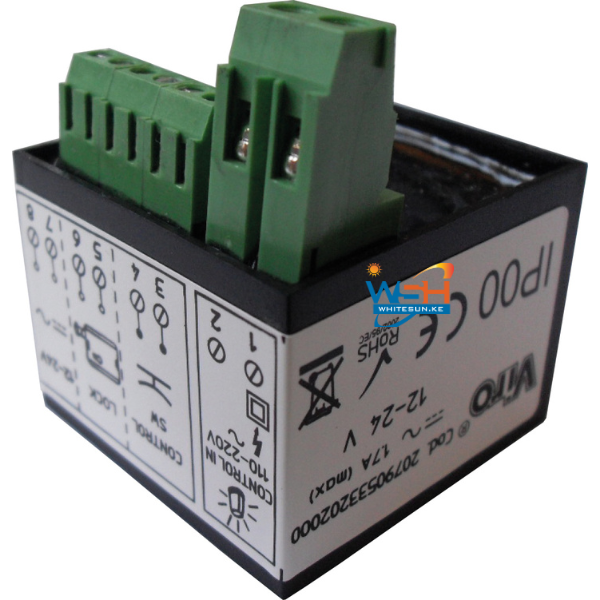

  controlled by an electronic board, can be interfaced with automation systems.
• Voltage:
  12V or 24V A.C. or D.C. (24V recommended).
• Case:
  one-piece galvanized steel, with cable entry on the back (for maximum protection) or on the side (opening a prepunched hole).
• Cover:
  galvanized steel, with automatic security block when the lock is closed.

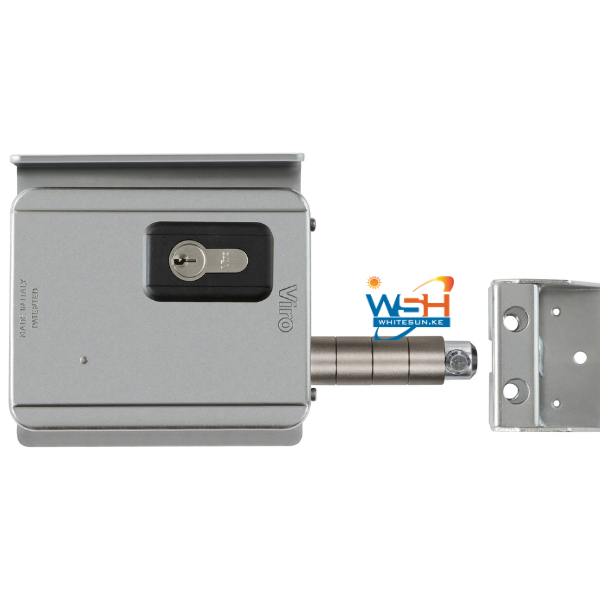

• Rotating spike dead-bolt:
  highly collision-proof, inserted in steel guides, protected by case-hardened steel rotating rings, operated by stainless steel springs. Guides and rotating rings treated with “NIPLOY PROCESS” nickel plating, anticorrosion.
• Cylinder:
  version suitable for profile half cylinder with length 40 mm (30+10) with DIN or universal cam.
• Mechanism:
  (of the half cylinder provided)
  • brass pins;
  • mushroom brass counterpins, pick-resistant;
  • phosphor bronze pin springs.
• Striker:
  galvanized steel, easily fitted thanks to the practical lock alignment template.
• Supplied with:
  galvanized steel striker for horizontal installation , galvanized steel roof-plate and striker plate, electronic board with possibility of interfacing with automation systems, Torx key for opening and closing cover, galvanised steel cylinder, nylon ring nut and plug, fixing screws.
• Packaging:
  single box
