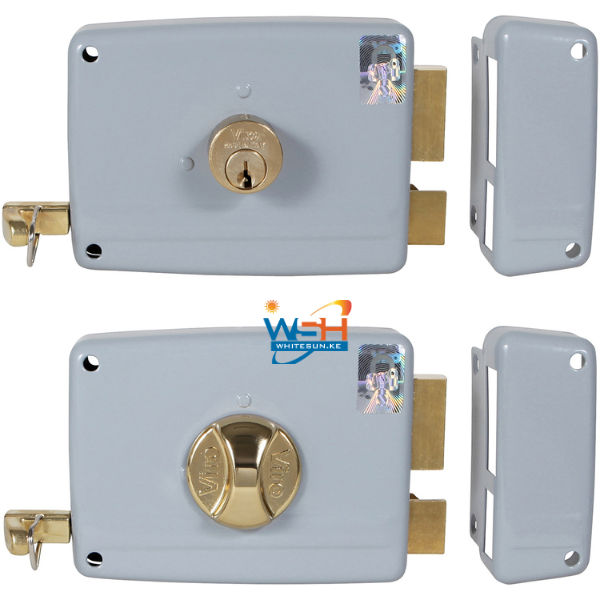

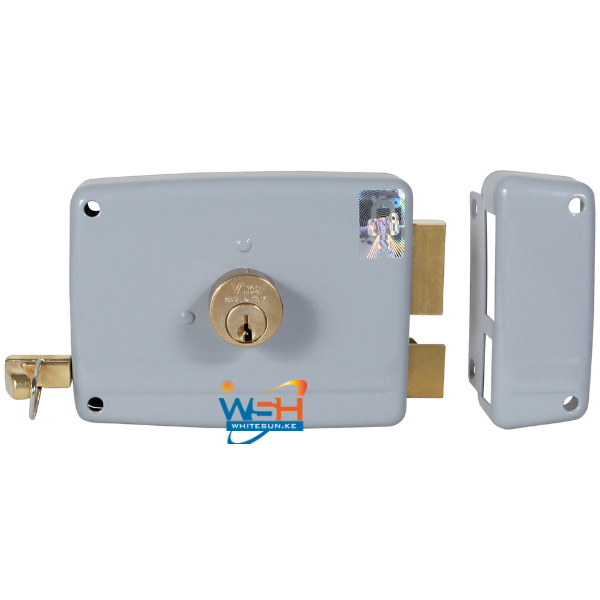

7503LH / RH RIM DOOR LOCKS

7503LH / RH RIM DOOR LOCKS

DESCRIPTION:

• Case:
  one-piece painted steel.Viro hologram to distinguish it from possible imitations.
• Cover:
  rear cover galvanized and passivated steel.
• Latch and dead-bolt:
  Solid brass. Latch easily reversible, key-operated from the outside, dogging device operated from the inside. Deadbolt with double or triple throw.
• Cylinders:
  solid brass, fixed internal, fixed (item 714) or loose (item 712) external.
• Keys:
  supplied with 3 Viro profile nickel plated brass keys.
• Thumb turn:
  (only for the 7600 series) ergonomic, brass-plated, from the inner side.
• Mechanism:
  • brass pins;
  • mushroom brass counterpins, pick-resistant;
  • phosphor bronze pin springs.
• Supplied with:
  painted steel striker, oval brass escutcheon (for versions with fixed external cylinder– item 714) or brass cylinder ring nut (for versions with loose external cylinder – item 712) and fixing screws.
• Packaging:
  single box.
