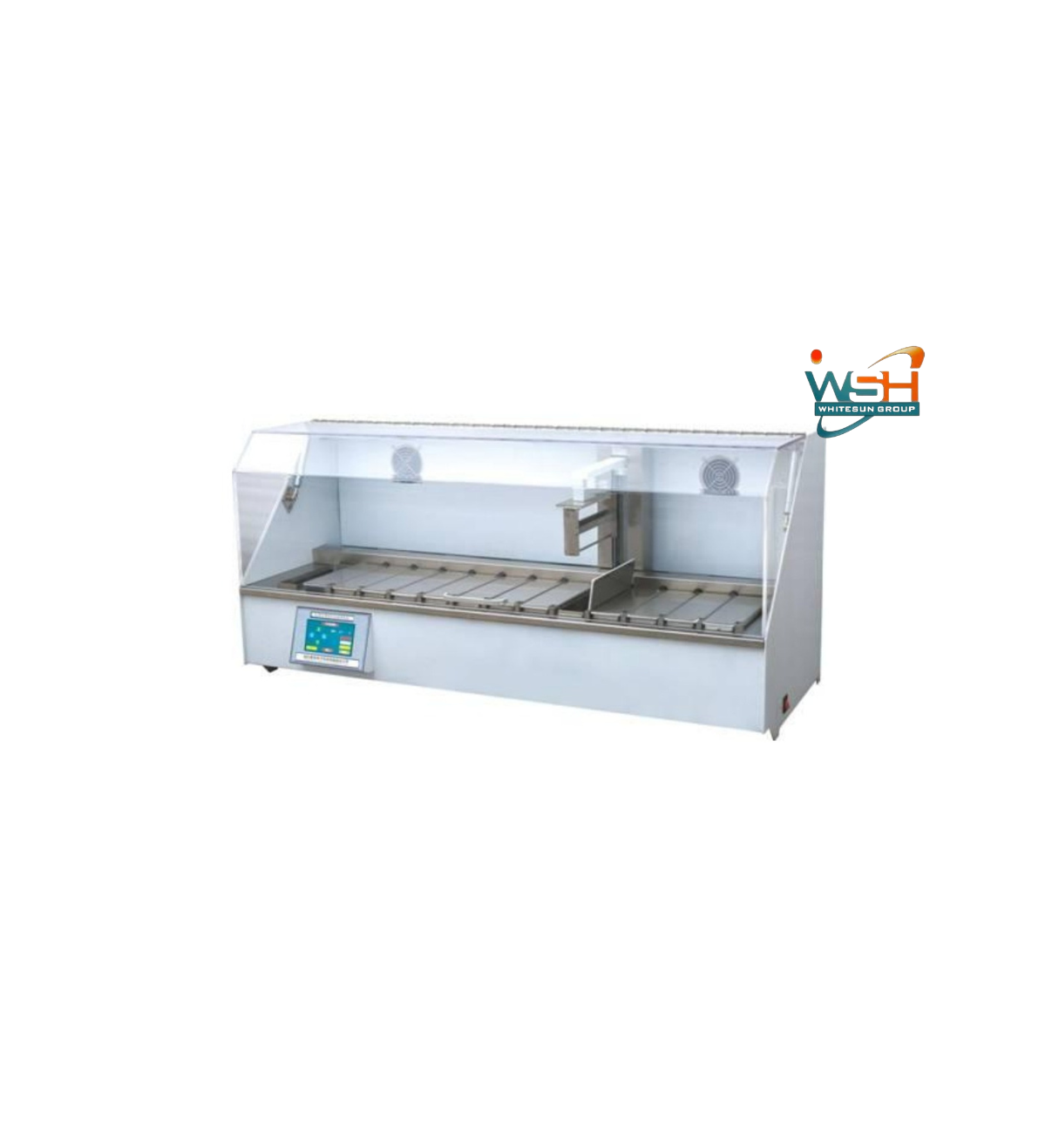

LSD-600 Slide Stainer

Description

1. Full English color touch screen display, ATM-type operation mode. The operation is simple and
easy to understand.
2. Multiple sets of programs are available for editing (non-sequential editing can be performed,
and dyeing steps and time can be programmed arbitrarily)
3. Automatic drying temperature can be set. The temperature around the drying cylinder is
uniform, and there is a water and gas overflow
4. With automatic detection and automatic reset function.
5. Strong anti-interference ability and high degree of intelligence.
6. Automatically control the flushing water level. When the dyed hanging blue enters the washing
tank, the water is automatically filled in the washing tank. When the hanging blue leaves the
washing tank, the water injection is automatically stopped, and the water in the tank is drained.
7. It has the function of locking cylinder protection
8. The drip residence time is adjustable. The dripping time can be adjusted according to the
sample volume and ambient temperature to ensure the purity of the reagent
9. The number of running steps is 24 steps, (the same cylinder position can be run repeatedly)
10. Adopt international standard synchronous toothed belt drive, low noise, high temperature
resistance, corrosion resistance, high transmission accuracy, with photoelectric positioning
sensor, so that the positioning is more accurate and the service life is long.
11. Harmful gas purification treatment: protect the health of staff and prevent the working
environment from pollution

Main Technical Data:
1. Sixteen sets of editable programs can be programmed arbitrarily
2. The processing volume of a single cylinder is 1000ML, and the loading capacity is 65 pieces
each time.
3. Single-cylinder processing time 0～99min99s
4. The number of shakings: the shaking time of the cylinder can be adjusted arbitrarily
5. Stirring times: can be adjusted arbitrarily
6. The drip residence time is: 0 seconds to 300 seconds can be adjusted arbitrarily
7. 14 cylinder positions, 1 washing cylinder (the first cylinder), one drying cylinder (the last
cylinder),
8. Drying temperature, 0-85℃ can be set arbitrarily
9. Power supply: 220V 50HZ ±10℅
10. (10) Power consumption: ≤300W
Net Weight:80Kg
Dimensions: 1161*480*550mm

Package Info:
Each instrument packed Wooden Case
Dimensions: 1260*615*695mm,
Gross Weight: 110kg
