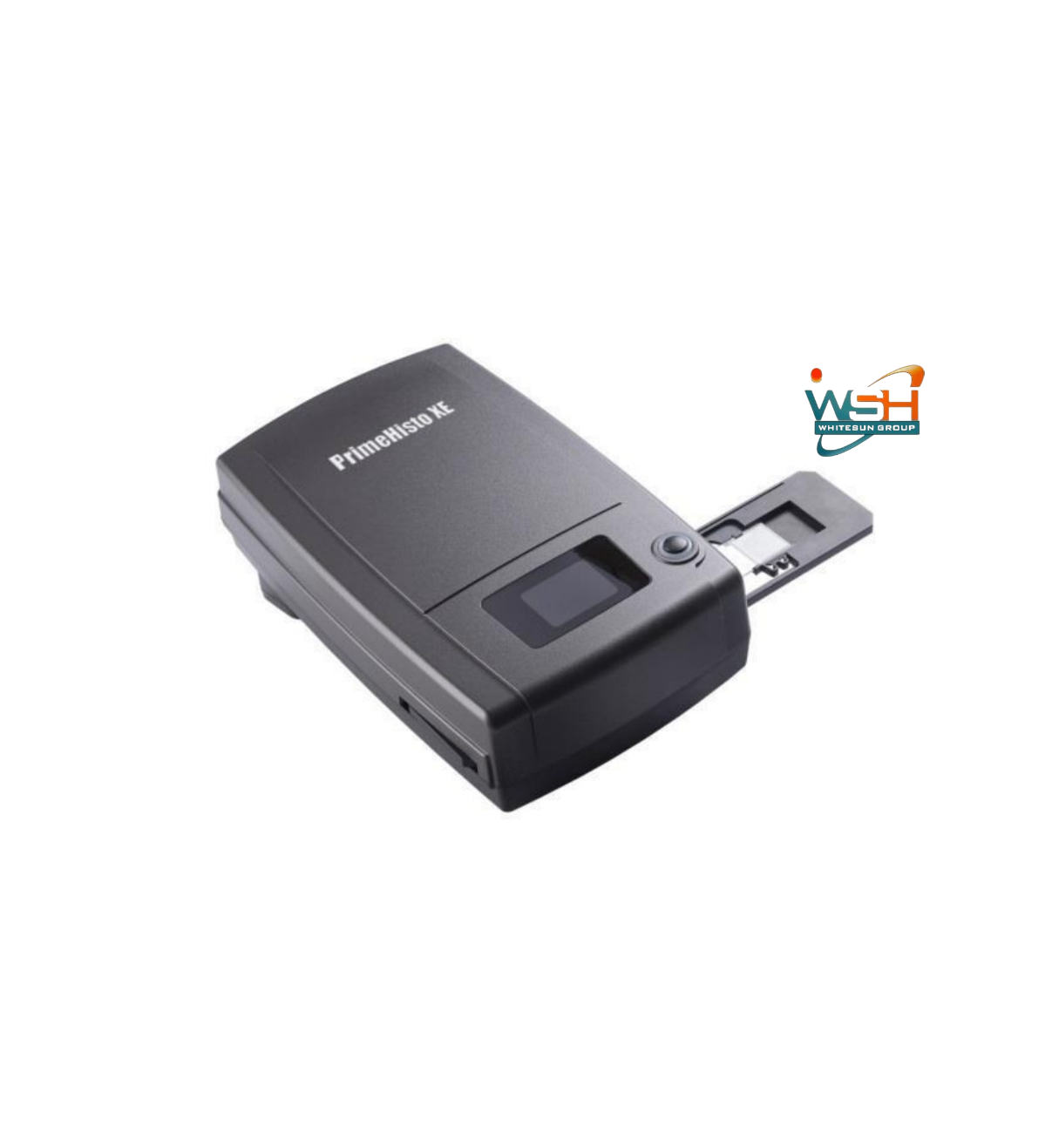

HS-TRO-001 Pathological Slide Scanner

Description

The PrimeHisto XE is a histological slide scanner. The PrimeHisto XE design is designed for
observation of histological samples, particularly medical/pathological tissue samples. The
PrimeHisto XE allows scanning of histological samples mounted on a 25*75mm (1 x 3 inch) slide.
With easy manipulation/setting, PrimeHisto XE allows the histological samples to be digitized in a
matter of seconds.
Scanners are equipped with HistoView, which is just an editing package that combines with the
product hardware driver to scan and adjust the effective quality parameters of the images in the
Windows and Mac OS environment. PrimeHisto XE allows you to save scanned images in a variety
of image formats, such as TIFF, BMP, and JPEG.
As a next-generation histological scanner, PrimeHisto XE has the ability to be suitable for most
histological slide samples and can scan the entire histological slide image in a scanning area of
24.3×36.5mm. PrimeHisto XE also has a high resolution of up to 10,000 DPI and is suitable for a
variety of micro applications, including advanced biology research in universities and basic biology
research in high schools.
1. Fast and economical digitization of organizational samples
2. HistoView can be easily installed in PC/MAC system, with simple operation interface and
powerful functions.
3. High dynamic range (3.8 OD), can easily identify each cell.
4. Wide range of applications, from basic histological research to high school biology research.
5. Equivalent to 75 times the resolution.
6. The newly designed rotatable polarizer holder (optional) allows scanning thin sections of
polished rock on a 1×2 inches glass slide in bright field and polarized light

Main Technical Data:
1. General technical parameters resolution:10000×10000 DPI
2. Dynamic range:3.8OD
3. Scan area:24.3*36.5mm
4. Scanning medium:75*25mm section
5. Photo formats: TIFF, JPEG
6. Light: transmits LED white light
7. Operating systems: Windows XP/Vista / 7/8/10, Mac OS X 10.5+
8. Dimensions :260 *155*70mm

Package Info:
Each instrument packed Wooden Case
Dimensions: 415*290*135mm,
Gross Weight: 2kg
