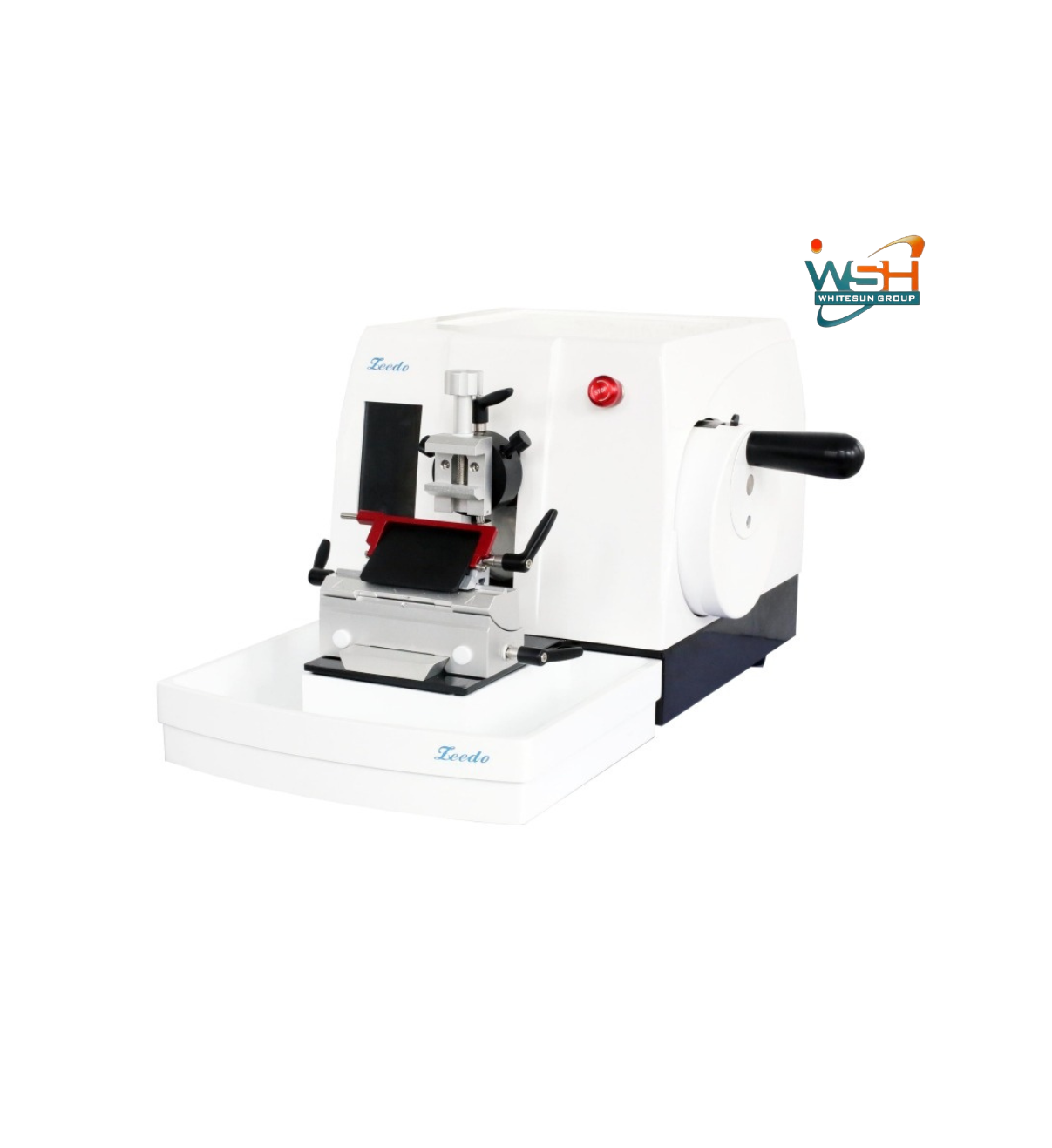

HS-3345 Fully Automatic Microtome

Description

1. Streamlined molded housing results in attractive appearance and is easy to clean.
2. Full-automatic sectioning with adjustable speed and three sectioning modes: continuous, step
and single.
3. LED display
4. Electronic trim function makes it easy to switch from trim and section mode
5. Specimen retraction mechanism protects specimen from unintended blade damage
6. Section counting function counts total section pieces and total thickness.
7. Unit contains a precise micro motion specimen feeding system which uses a micro computer,
optical signal and stepper motor to control specimen feeding resulting in more precise
specimen feeding.
8. Internationally accepted slide mechanism and groove ensures the precision of specimen
movement while making the unit free from lubrication and maintenance requirements.
9. Unit contains a handwheel force balancing system for adjusting the balancing force during
sectioning, making rotation even and smooth;
10. Two safety locking mechanisms on the handwheel; one locks on the top; the other locks at any
position
11. The disposable blade can move horizontally to avoid the dangers of unintended contact with
the blade. Every blade cuts specimen into three equal parts, which ensures the entire use of blade
edge.
12. The waste tray collects sectioning debris are easily removed for cleaning
13. Cassette clamp and C clamp are optional
14. Specimen orientation on X/Y axes 8°
15. Alarm to warn of forward or backwards limitation.
16. Self-diagnostic prompt.
17. Emergency stop and foot switch (optional)
Main Technical Data:
1. Section thickness range：0.5μm～100μm(3~5um is the best slicing effect)
2. Section thickness setting：0.5～5μm，in 0.5μm increment
a) 5～20μm，in 1μm increments
b) 20～60μm,in 5μm increments
c) 60～100μm，in 10μm increments
3. Trimming thickness: 1～600μm
4. Trimming thickness setting：1～10μm，in 1μm increment ;
a) 10～20μm，in 2μm increments
b) 20～50μm，in 5μm increments;
c) 50～100μm，in 10μm increments;
d) 100～600μm，in 50μm increments;
5. Specimen retraction: 10～150μμm(Can be closed)，in 1μm increments ;
6. Specimen vertical stroke：60mm
7. Specimen horizontally stroke：25mm
8. Max specimen size with C clamp (H×W)：55mm*45mm
9. Dimensions (W×D×H)：570*510*490mm
10. Net Weight：34.6kg

Accessories:
Standard Setting List
1. Disposable Blade Holder 1 pc
2. Specimen Cassette
1 pc
3. Fuse (2A)
2 pcs
4. Power line
1 line
5. Hexagonal Wrench
1 set
6. Brush
1 pc

Optional Accessories

1. Paraffin Wax Holder
2. Feather Microtome Blade
Out Package Info:
Each instrument packed Wooden Case
Gross Weight: 45kg
Dimensions: 695*525*480mm
