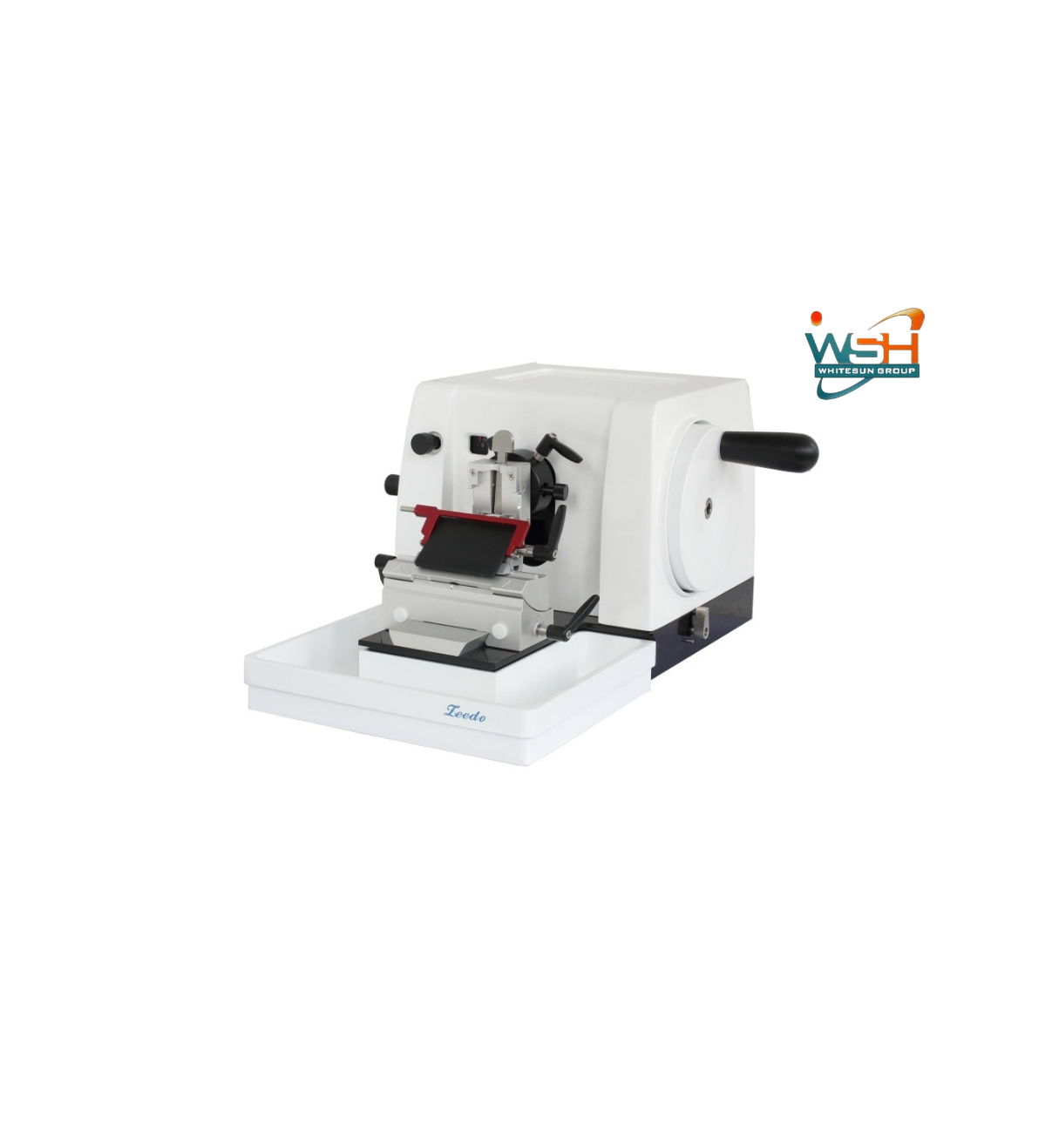

HS-2205 Rotary Microtome
Description
Features:
1. It have clipper –built case, the user can put blade, wax block, or other consumable on the top of
case. it is easy.
2. It do not need to lubricate and maintain the microtome frequently.
3. The hand wheel in the right can be locked in any position, and the handle can be locked in
highest position, it is double safe for changing blade or tissue block.
4. The specimen Orienting system: axes X and Y 8°, axis 180°.
5. It adopt the special blade holder, it is more safe and convenient to use the disposable blade
directly. it also can to longer the user life of disposable blade.
Main Technical Data:
1. Slice thickness range: 0μm～60μm
2. Section thickness setting: 0-2 um in 0.5 um –increments
a) 2-10um in 1 um-increments
b) 10-20 um in 2 um-increments
c) 20-60um in 5 um-increments
3. Horizontal specimen stroke :20 mm
4. Vertical specimen stroke : 50mm
5. Slip precision: ± 5%
6. Maximal slice section: 50 × 45mm
7. Specimen adjustment direction: horizontal 8°, vertical 8°, rotating 360°
8. Movement range of blade holder base: front and back ±25mm, left and right ±25mm
9. Blade holder angle 0~10°
Accessories:
Standard Setting List
1. Disposable Blade Holder 1 pc
2. Specimen Cassette Clamp
1 pc
3. Hexagonal Wrench
1 set
4. Brush
1 pc
5. Optional Accessories
6. Paraffin Wax Holder
7. Feather Microtome Blade
Net Weight: 30kg
Dimensions: 500*480*280mm
Package Info:
Each instrument packed Wooden Case
Dimensions: 520 *520*450mm,
Gross Weight:41 kg
