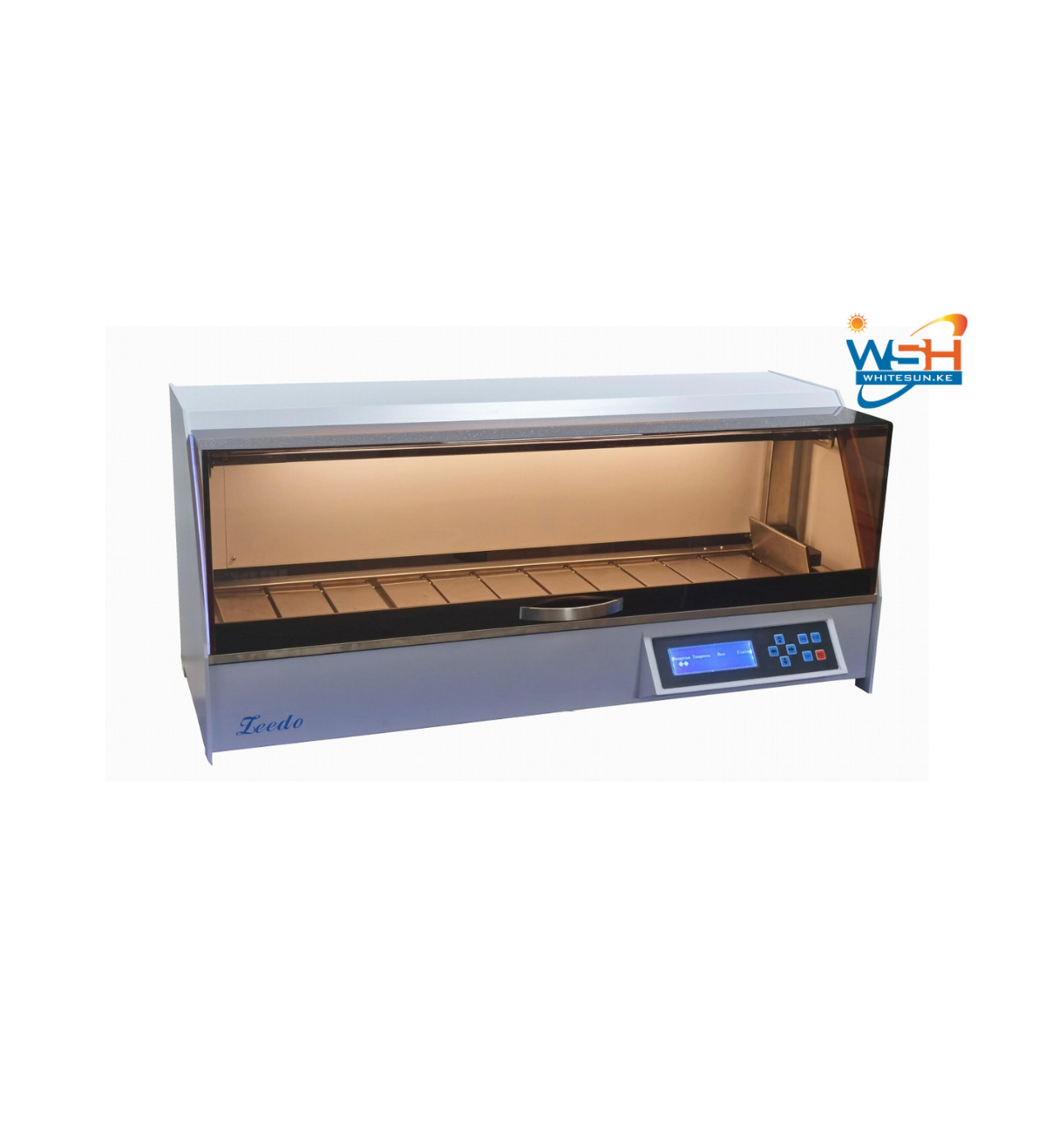

HS-2000 Automatic Tissue Processor

Description

1. English menu, man-machine dialogue, easy to operate.
2. With 16 sets of editable programs, intelligent operation and operation.
3. Power failure protection function, automatically switch to the built-in power supply after power
failure, it can continue to operate for 4 to 6 hours during a power outage. The tissue protection
cylinder can be automatically operated after a power outage. Does not contain heated paraffin.
If the temperature of the heated wax cylinder does not reach the set temperature, the tissue will
not enter the wax cylinder and return to the protection cylinder to wait. High degree of
intelligence, also configure high-power battery, to ensure that the program is completed in one
time.
4. Add specimens at any time during the running of the program; you can switch the paraffin bath
to warm the wax at any time. Real-time display of program content, heating status, set
temperature, real-time temperature and other operating status.
5. The scheduled boot time can be set at any time according to the needs of the work.
6. The surface of the machine body adopts APS static electricity, spraying process, high strength,
corrosion resistance, streamlined appearance and easy to clean.
7. Fully sealed dehydration operation, external exhaust device ensures a green and
environmentally friendly working environment.
8. There are three sets of temperature control systems to ensure that one set is in normal use and
two sets are on standby. Real-time display of temperature during operation
9. Heating status at a glance, temperature control accuracy ± 1 ° C
10. Automatic switch machine can set the time arbitrarily within one year
Main Technical Data:
1. 12 liquid cylinders (3 of which are wax cylinders)
2. Single cylinder volume: 2200ml
3. Basket can hold125 specimens
4. Single cylinder working time: arbitrarily set within 0-24 hours
5. Temperature setting: 0-99 °C arbitrary setting
6. Cylinder start dwell time: 45-100 seconds.
7. Organization protection cylinder position 7.
8. Stirring times: 0-5 times/minute with arbitrarily set, 3 times/minute is the best
9. Power supply: AC220V±10%, 50HZ±10%
10. Power: ≤500WProduct Function:
Net Weight: 82kg
Dimensions: 1250*410*560mm
Package Info:
Each instrument packed Wooden Case
Gross Weight: 107kg
Dimensions: 1330*540*740mm
