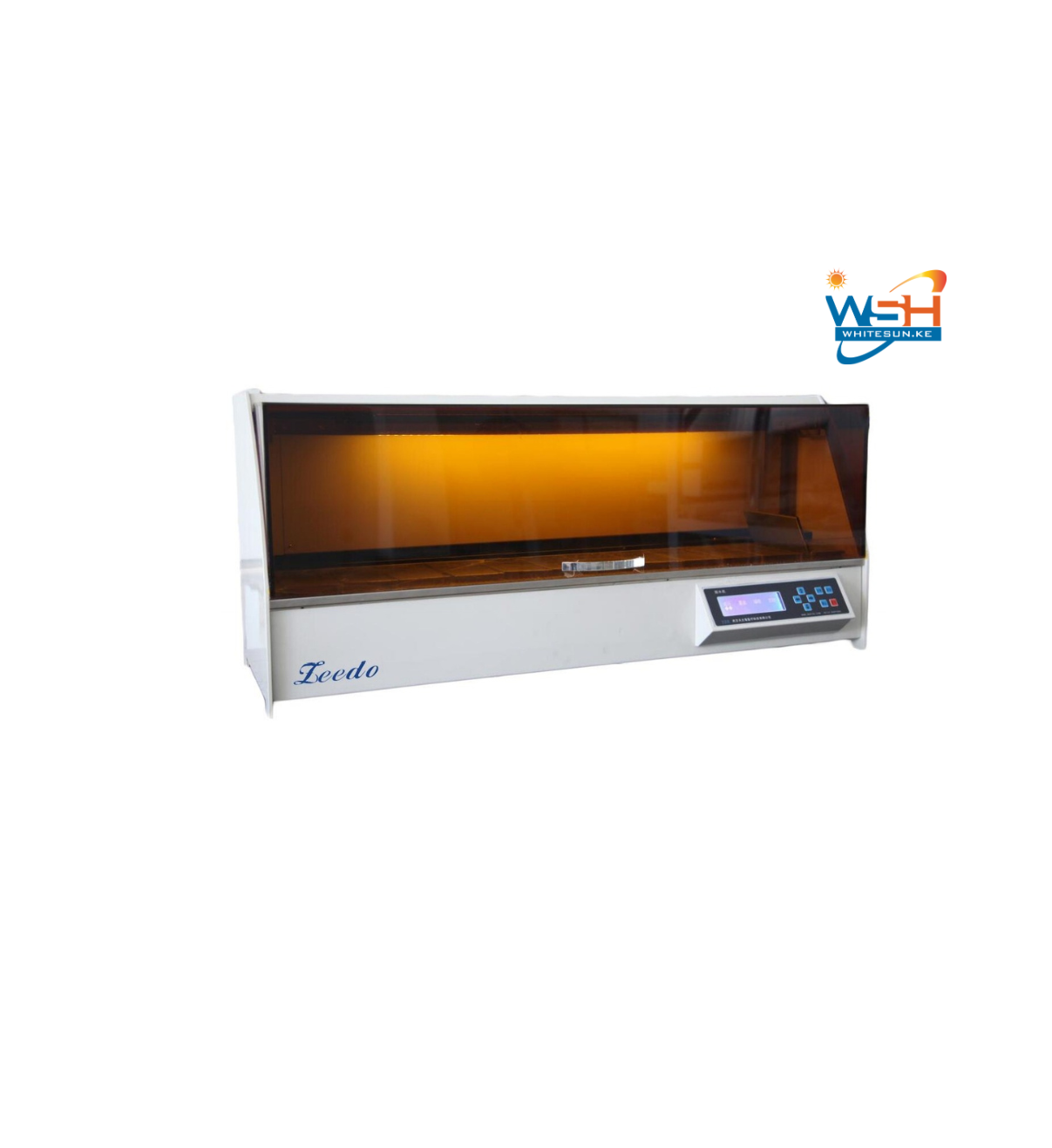

HS-1500 Automatic Tissue Processor

Description

1.

English menu, man-machine interaction, simple operation.

2.
Double-control heat without water
3.
Based on different tissues, several running programs available for customers
4.
Self-provided power supply can continue to operate for 4 to 6 hours during a power outage.
The tissue protection cylinder can be automatically operated after a power outage. Does not
contain heated paraffin. If the temperature of the heated wax cylinder does not reach the set
temperature, the tissue will not enter the wax cylinder and return to the protection cylinder to
wait. High degree of intelligence
5. Environment friendly: The air as purified through internal circulation can be exhausted off the
window.
6.
With transmission of gear and rack, mechanical failures can be reduced.
7. The surface of the machine body adopts APS static electricity, spraying process, high strength,
corrosion resistance, streamlined appearance and easy to clean.
8. There are three sets of temperature control systems to ensure that one set is in normal use and
two sets are on standby. Real-time display of temperature during operation
9.
With 16 sets of editable programs, intelligent operation and operation.

Main Technical Data:
1. Tanks: 12 Tanks (3 wax Tanks in the end)
2. Capacity of single tank: 1500ml
3. Basket can hold 75 specimens
4. Single-tanks processing time: Randomly set within the range from 0 to 99 hour(s).
5. The temperature of wax cylinder can be randomly set within the range of 99℃.
6. Cylinder start dwell time 45-100 seconds.
7. Tissue-protection cylinder sequence: 7th cylinder
8. Stirring times: 0-5 times/minute with arbitrarily set, 3 times/minute is the best

Accessories:
Standard Setting List
1. Tanks
12 pcs
2. Tissue basket
1 pc
3. The exhaust pipe
1 pc
4. Tissue cassette
20 pcs
5. Fuse (5 A)
2 pcs
6. Power line
1 line

Optional Accessories
1. Extra Tank
2. Tissue Basket
Net Weight: 67kg
Dimensions: 1130*400*500mm
Package Info:
Each instrument packed Wooden Case
Gross Weight: 100 kgs
Dimensions: 1260*570*640 mm,
