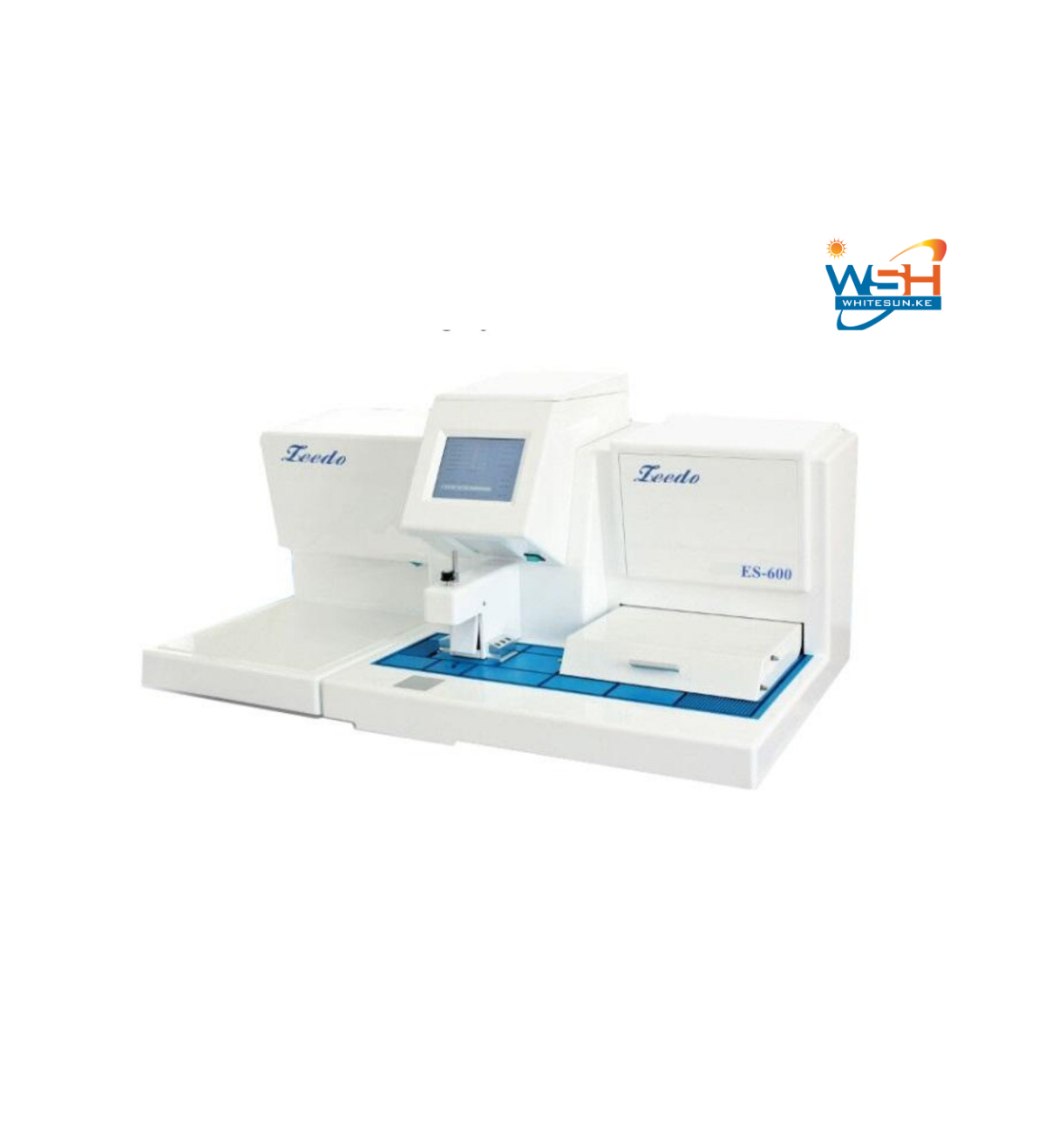

ES-600 Tissue Embedding System
Description
1．Automatic program control, It can be setting the operation time for any day, any time, any
minute
2．In a week
3．The machine is composed of two molds,main console and cold plate. It is independent desi
gn, can put the position left to-right or right to -left
4．The large 6L capacity allows user processing 400 tissues at the same time.
5．With manual operation and pedal switch for the operator to choose
6．LED light for embedding space
7．Tweezers storage cylinder is convenient for user
8．Touching LCD scree is simple and convenient, and it is clear at a glane
Main Technical Data:
Main Console:
Model No.: ES600
Wax cylinder volume: 6L
Dimensions: 600 *650 * 450mm
Weight:
40kgs.
Voltage: 220V 50Hz
Power: 1500w
Heater temperature setting range: ambient to 99 ℃
Temperature for the heat preservation tank ambient to 99 ℃
Temperature for the operation table:
ambient to 99 ℃
Working environmental temperature:
0 ℃ – 45 ℃
Cryo Console:
The size for the cooling surface: 365*330mm
Dimension: 380*650*450mm
Voltage: 110v-240v; 50Hz-60Hz
Power: 120W
The temperature for the cooling plate: -20 degree
Accessories:
Standard Setting List
1. Foot Switch
1 pc
2. Fuse (5 A)
2 pcs
3. Power line
2 line
Optional Accessories
1.Temperature sensor
Package Info:
Each instrument packed Wooden Case
Dimensions: 1190*750*760 mm,
Gross Weight: 100 kg
