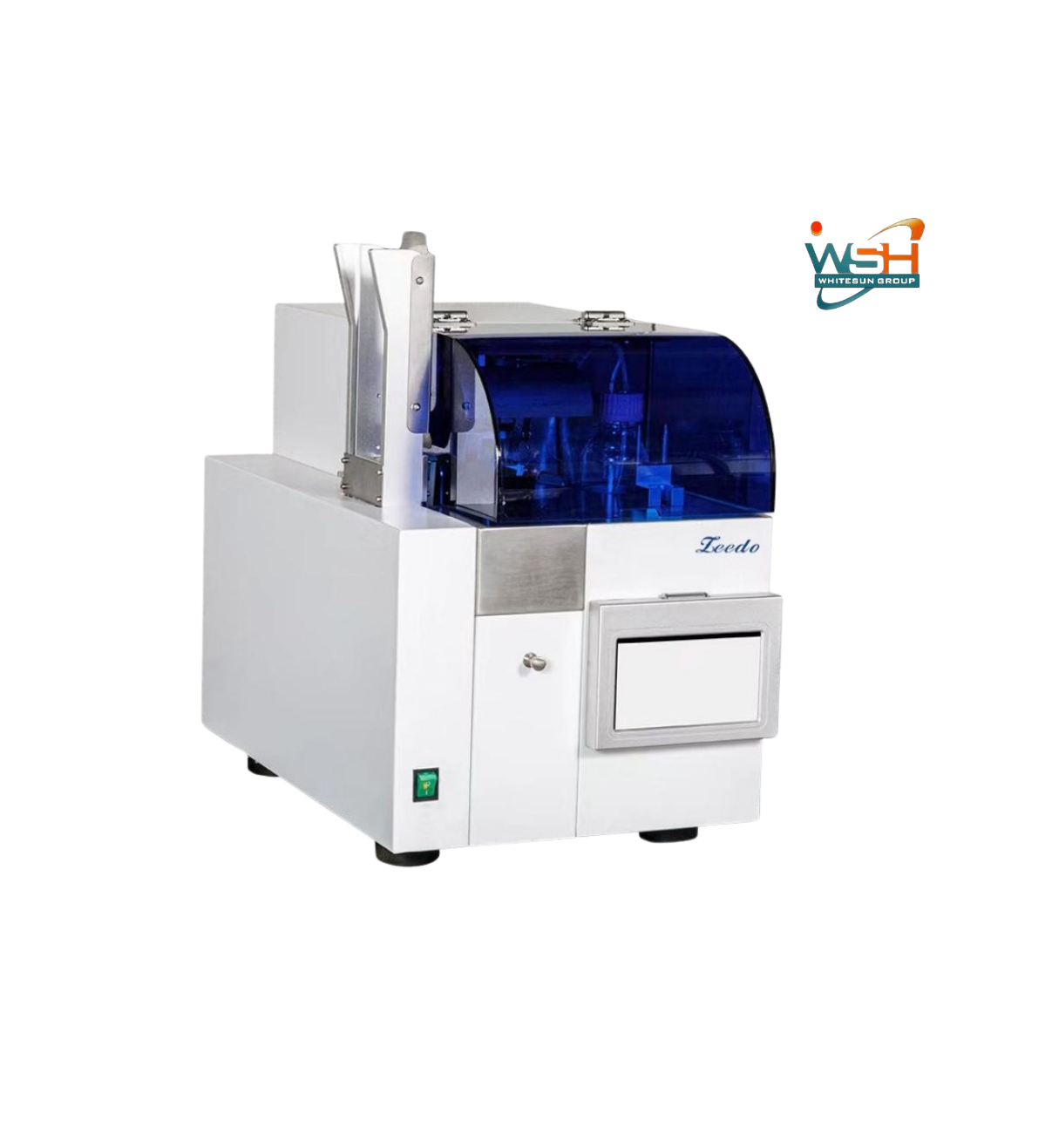

CS-T Cover Slipper

Description

1. Covers of various brands and specifications
2. Color touch screen control interface, real-time dynamic prompts of operation instructions,
simple and efficient operation, prevent misoperation.
3. Compatible with basket type, non-basket type and other types of dyeing racks, automatic
identification, no manual conversion
4. By adjusting the flow and speed of the sealing rubber, it can be compatible with imported and
domestically produced multi-standard sealing glue, stepless adjustment and real-time
response.
5. Whether the dispensing needle is in real-time detection and alarm function at the working
position, and a cleaning screen is designed at the storage position to effectively prevent the
nozzle from drying (manual operation is required)
6. Automatically monitor the quality of the cover slipper during the working process. The
fragments and bad pieces are automatically discarded into the waste cassette. The sensor has
self-checking function to effectively improve work efficiency.
7. Automatically carry out two rounds of slide scans during the work process, effectively reducing
the leakage rate of the slides and improving the quality of work.
8. Slide grab has automatic adjustment positioning function, automatically reset after 3 failed
capture and graphic and audible alarm
9. The slide out box has the function of putting it at any time and taking it at any time, and the machine automatically performs the operation; the machine without the exit box automatically
detects and has the graphic sound alarm function.
10. The process of storing slides has the function of blocking automatic detection and resetting
alarms.
11. Provides two modes of dry sealing and wet sealing. Users can switch between the conventional
parameters as needed.
12. The alarm mode adopts various modes such as graphic display and sound, and the sound
alarm automatically stops after 5 times.
13. Using large suction ultra-quiet exhaust fan, built-in replaceable activated carbon filter to
enhance heat dissipation and effectively prevent air pollution

Main Technical Data:
1. Specimen slide throughput: 200~400pieces/hour
2. Specimen slide holders：20~30pieces/holder
3. Output magazines：30piece/magazine
4. Cover slip magazine capacity：120~160 pieces /magazine
5. Specimen slide size：26*75mm
6. Cover slip size：24*50mm
Net Weight: 47kg
Dimensions: 590*390*620mm

Package Info:
Each instrument packed Wooden Case
Gross Weight: 62kg
Dimensions: 680*480*820mm
