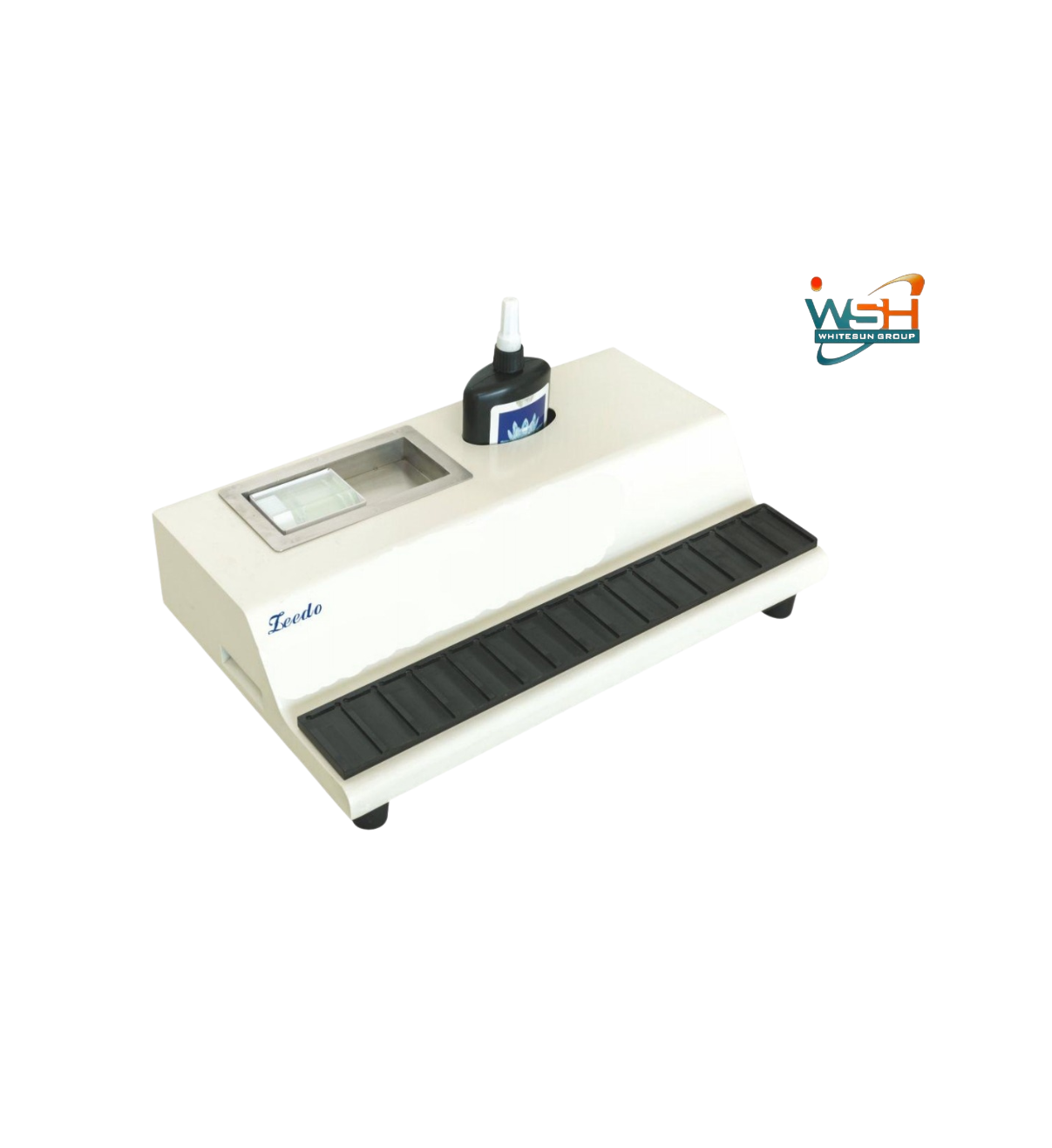

CS-FI Mini Cover Slipper
Description
Covering machine is a fast curing device for sealed glass slides. This machine adopts
advanced microcomputer technology, which makes the equipment more accurate, stable and
anti-interference ability. Suitable for medical colleges, hospital pathology, medical research units,
animals and plants and food inspection departments.
Usage:
1. The glass slide containing the organization is neatly discharged into the concave frame of
the workpiece table, and the numbered part is hung on the side of the work table;
2. Take out the glue bottle and spin off the cone cover, cut a small section at the top of the
cone, and drill a large and small suitable hole at the top;
3. In turn, drop a small drop of glue on the slide tissue and cover the cover glass slide, and
gently press the cover glass with your finger to spread the glue evenly;
4. Turn on the machine power switch, use the left hand to send the glass slide with the cover
glass from the left hole of the machine (can be single, or can be sent side by side), after 14
seconds, the glass will be automatically sent out from the right side, the glue is dry
Notes:
1. 220 V power outlets must have secure ground wires;
2. Disconnect the power when the 2. is not working;
3. The glue box is specially made and can not be replaced by other containers;
4.Pay attention to finishing the slide in time to prevent clogging the exit.
Main Technical Data:
1. Rated voltage: AV220V±10%
2. Power frequency: 50±1 HZ
3. Rated power : ≤100W
4. Speed:30 tablets/min
5. Slide seat:15
Net Weight:17.5kg
Dimensions: 500*300*120mm
Package Info:
Each instrument packed Wooden Case
Gross Weight: 20kg
Dimensions: 577*387*237mm
