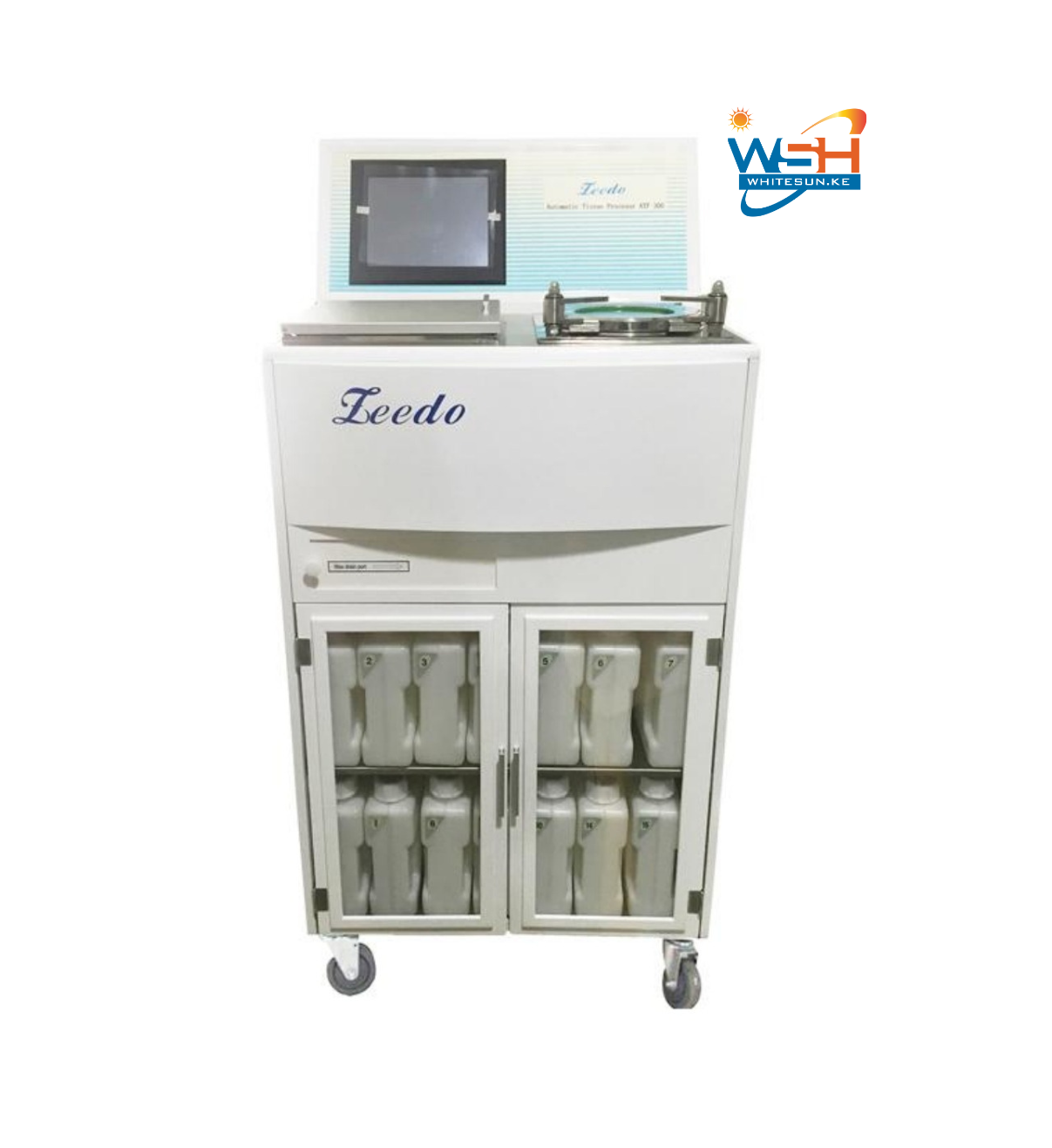

ATP-300 Closure Tissue Processor (100/200/300cassettes)

Description

1. This machine is an automated tissue processor with beautiful appearance, unique design and
technological innovation. When processing specimens, you can choose heating, pressurizing,
vacuum, normal pressure and other modes to meet the processing of various types of
specimens.
2. Working and resting are in a fully sealed state, which can effectively avoid the volatilization and
loss of reagents, reduce operating costs, and create a clean working environment.
3. When processing specimens, the specimens are in a fully sealed state, and the fluid is changed
without changing the cylinder, which subverts the traditional dehydration mode and effectively
avoids tissue damage. There is no danger of specimen damage caused by power outages,
cylinder jams or other mechanical failures of traditional dehydrators.
4. The tissue processing boxes can store 3.8L/5.3L/6.8L reagents. The unique software control,
three-stage discharge system and special design of the processing bottle reduce the carryover of reagents.
5. Adopting a color touch screen that is easy to observe, the interface is intuitive and clear, and

easy to operate.
6. This machine has a scheduled automatic operation function, which can be set to automatically
start at any time on any day within 15 days.
7. After the work is completed, the machine will have sound and screen prompts.
8. The computer control system is sensitive and reliable, and has multiple sets of user programs
for users to set and choose.
9. The liquid and gas circuit control systems are sensitive and reliable, and can completely
evacuate the liquid in the reagent bottle.
10. With over-temperature protection function for accidental heating out of control.
11. It has a power-off protection function (optional function). After a power-off, the instrument can
automatically work in sequence from the breakpoint when the power is restored.
12. Can process 126/267/356 tissue specimens each time. The special specimen processing
basket is extremely convenient to pick up and place the specimen basket, and the operation
can be completed with one hand.
13. Number of programs:10 programs

Main Technical Data:
1. Reagent bottle capacity: 2.3L(100 cassettes)
3.2L(200 cassettes)
4.8L (300 cassettes)
2. 10 reagent bottles, 2 cleaning bottles, 1 filter, 1 backup (also can use be filter) ,3 wax cylinders
3. Retort volume: 3.8L(100 cassettes)
5.3L(200 cassettes)
6.8L (300 cassettes)
4. Wax cylinder volume: 2.6(100 cassettes)
4.3(200 cassettes)
5.5L(300 cassettes)
5. Reagent temperature range: 30℃-65℃
6. Wax bath temperature: 50℃-70℃
7. Stirring time: 0-5 minutes
8. Stirring time interval: 10 minutes
9. Operation mode: manual and automatic
10. Input power: 1000W
11. Power supply voltage: 220V 50Hz

Accessories:
Standard Setting List
1. Tissue Basket
1 pcs
2. Reagent Bottle
17 pcs
3. Fuse (10A)
2 pcs
4. Power line
1 line
5.
Optional Accessories:
1. Tissue Basket
2. Regent Bottle
3. Vacuum or not
Net Weight: 98kg (100 cassettes) /123kg (200 cassettes)/130kg(300 cassettes)
Dimensions: 550*600*1180mm (100 cassettes)
625*700*1250mm (200 cassettes)
625*700*1250mm (300 cassettes)
Package Info:
Each instrument packed Wooden Case
Dimensions (for 3kinds capacity machine):
700*680*1390mm / 800*740*1460mm/ 800*740*1460mm,
Gross Weight: 130kg/165kg/172kg
