Canon XA15 Compact Full HD Camcorder with SDI, HDMI, and Composite Output

Canon XA15 Compact Full HD Camcorder with SDI, HDMI, and Composite Output

Highlights

Equipped with 20x HD Zoom Lens

Native 1920 x 1080, 1/2.84″ CMOS Sensor

Dynamic Image Stabilization

Canon Digic DV 4 Image Processor

Overview

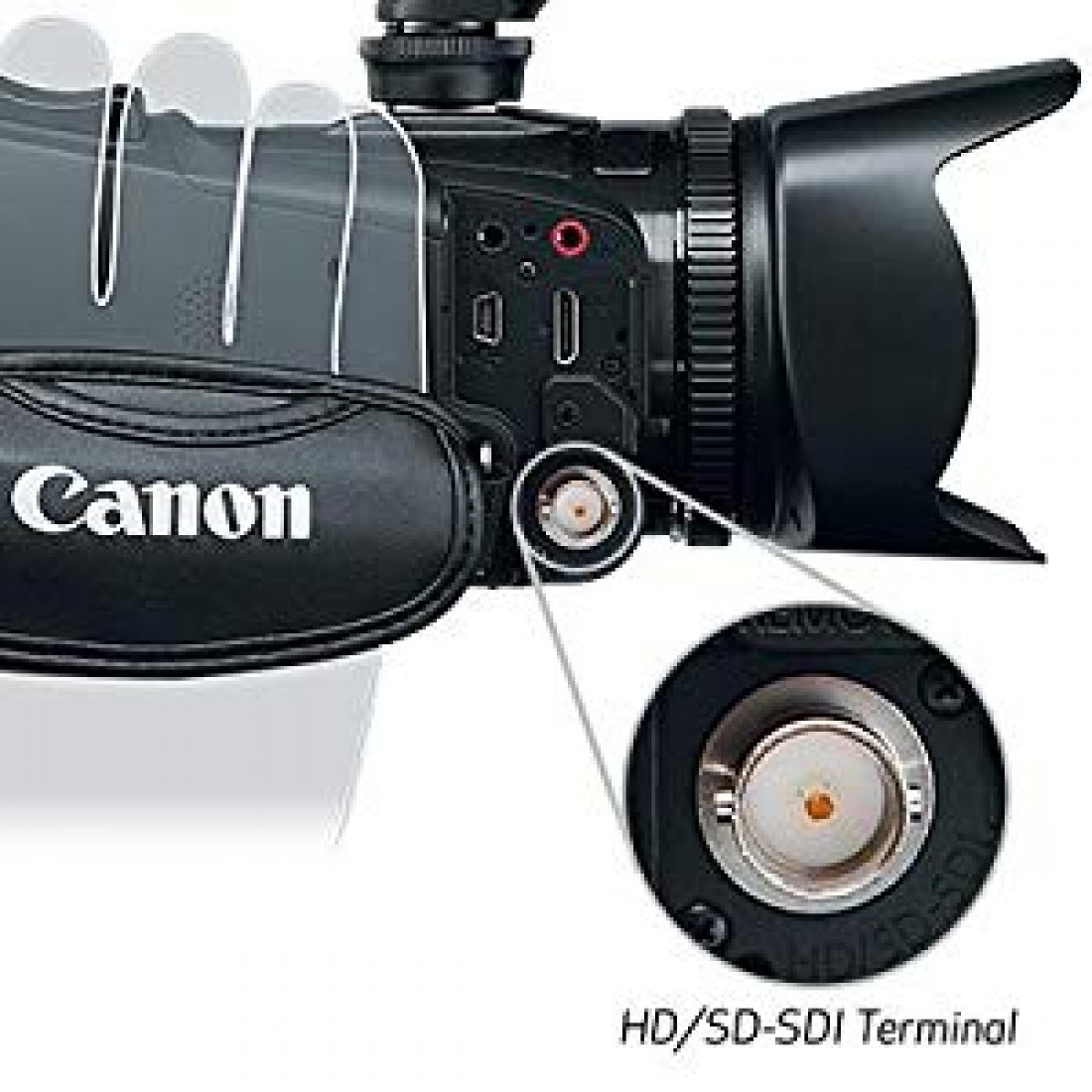

The XA15 Full HD Camcorder from Canon is a run-and-gun camera that is suitable for event coverage, ENG, and independent and documentary filmmaking. This camera incorporates SDI, mini-HDMI, and composite outputs. It also features a 1/2.84″, 1920 x 1080 CMOS sensor that is capable of capturing videos at various frame rates up to 59.94p, including a 24p mode for a more cinematic feel. Integrated into it’s construction is a Canon 20x HD optical zoom lens with a 35mm equivalent zoom range of 26.8 to 576mm, and features an 8-bladed iris to render highlights in a more natural manner.

Another feature is Canon’s Digic DV 4 image processor. This high-speed image-processing engine powers Canon’s Dynamic IS (Image Stabilization) mode reducing image distortion over traditional up-down, left-right image stabilization by adding correction for camera roll in three axes. The power of the Digic DV 4 allows the camera to simultaneously encode your video to two different codecs and bit rates, allowing you to have web-ready versions of your master footage available as soon as you stop recording.

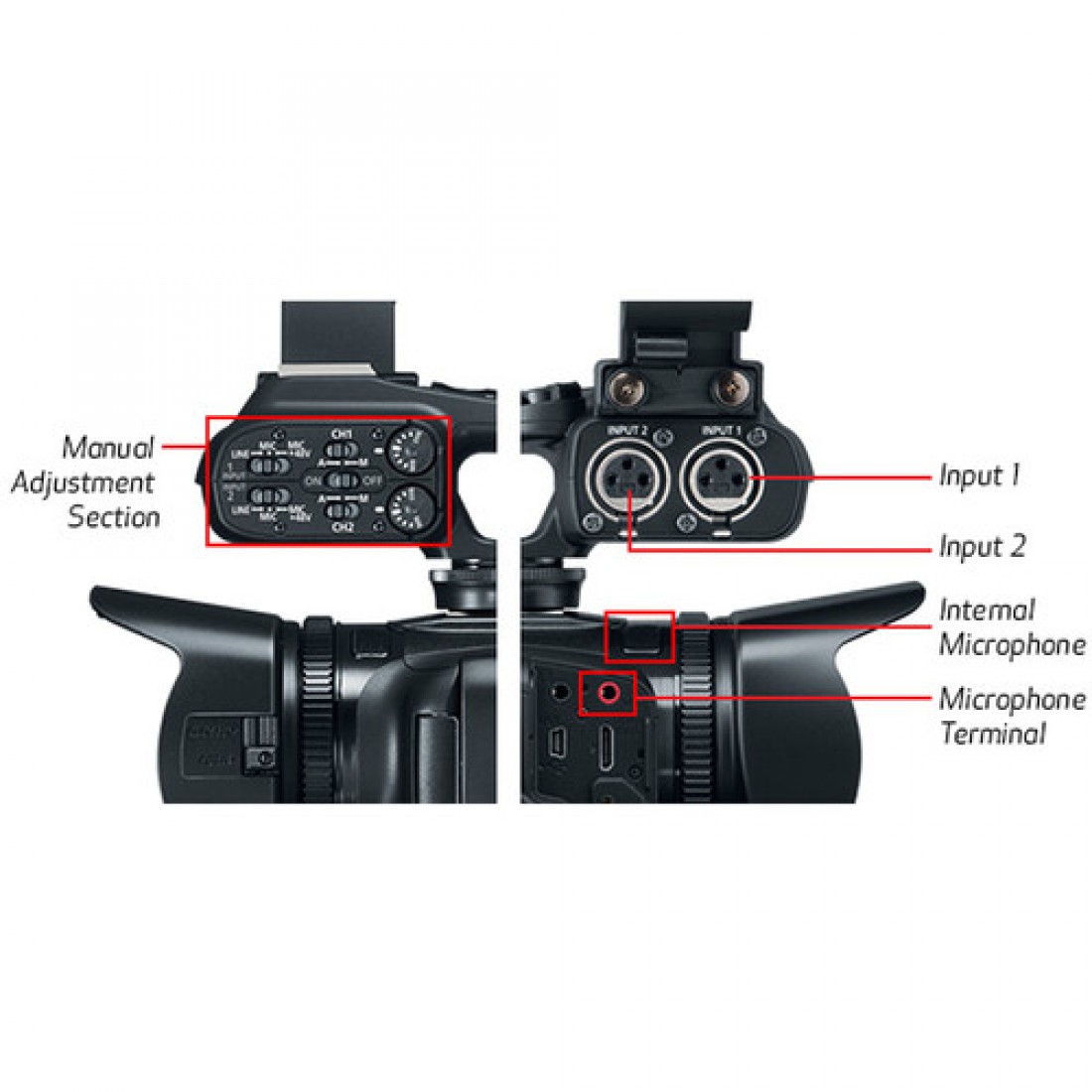

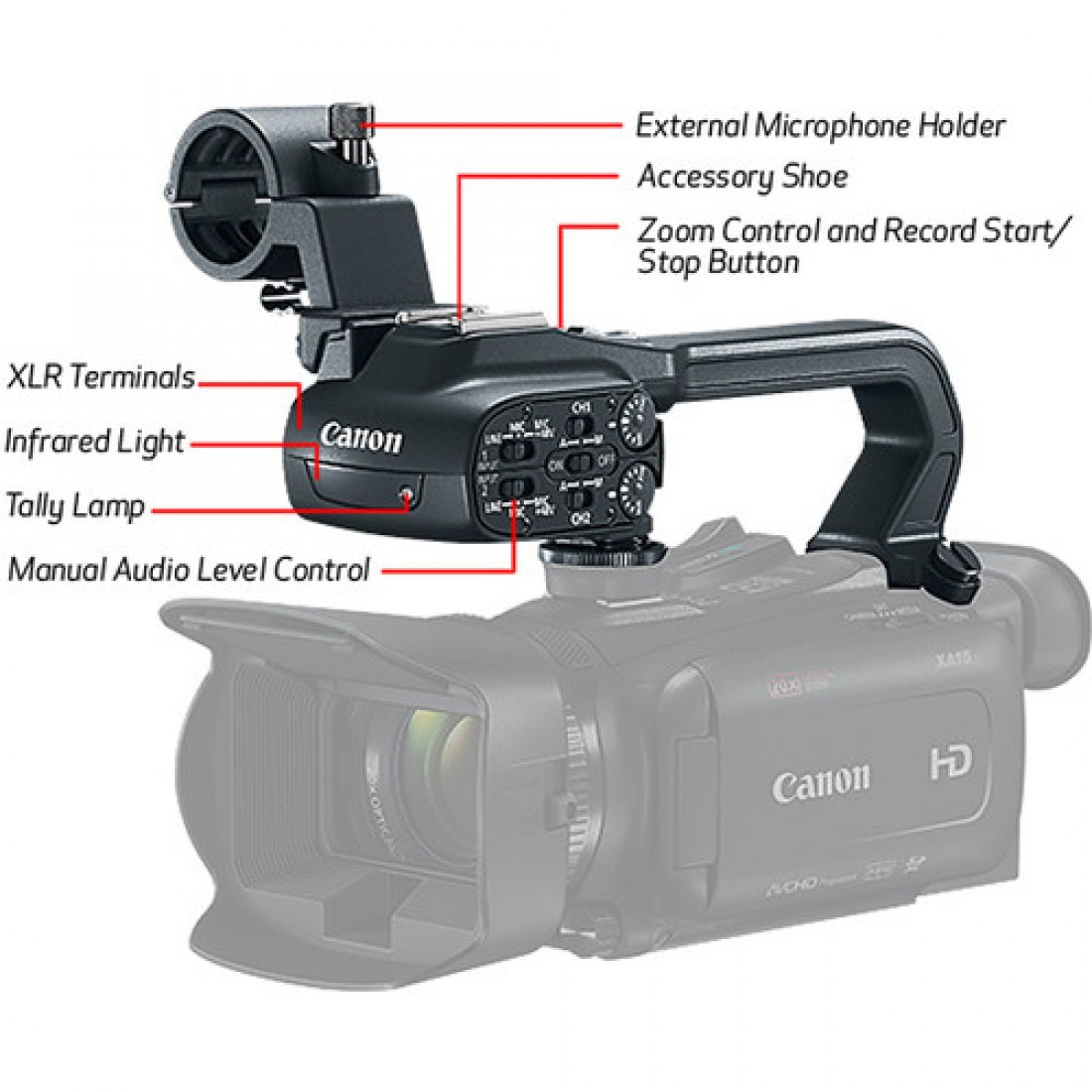

The XA15 features both a 3″ OLED touch panel view screen with a 10,000:1 contrast ratio, and a color electronic viewfinder with 1,560,000 dots of resolution. The camera features full manual control and auto modes for exposure, focus, white balance, gain, and shutter speed. The camera provides professional features such as a pre-record buffer, peaking, zebra bars, color bars, and reference tone. The zoom speed is adjustable with variable, constant (with 16 different speed levels), fast, normal, and slow settings. The camera features a detachable top handle with zoom toggle, record start/stop, IR emitter, tally light, accessory shoe, external mic holder, two XLR connectors with phantom power, and manual audio level controls.With two built-in SD/SDHC/SDXC memory card slots, this camcorder allows you to record videos to media cards in both slots at the same time. This allows you to create an instant backup copy for archiving and data protection. You can also capture high-resolution AVCHD or MP4 video files on one card while creating a lower data rate MP4 more suitable for the web on the other card. When using two media cards and the camera is in Relay mode and one card becomes full, recording automatically switches to the other card.

Features

Canon Native 1920 x 1080 CMOS Sensor

20x Optical Zoom Lens

Digic DV 4 Image Processor

Auto Focus

Zebra bars selectable between 70 and 100%

Peaking and 2x image magnification as focus aids

The camera can display and record color bars or color bars with reference tone. The color bars comply with the SMPTE standards. Reference tone levels can be set at -12, -18, or -20 dB

3″ OLED Touch Panel View Screen and EVF

Selectable manual/automatic control on the camera functions

Wired Connectivity

Can capture 1920 x 1080 still images to an SD memory card during recording and “frame-grabbed” during playback

Equipped with two SD/SDHC/SDXC card slots for varied recording options

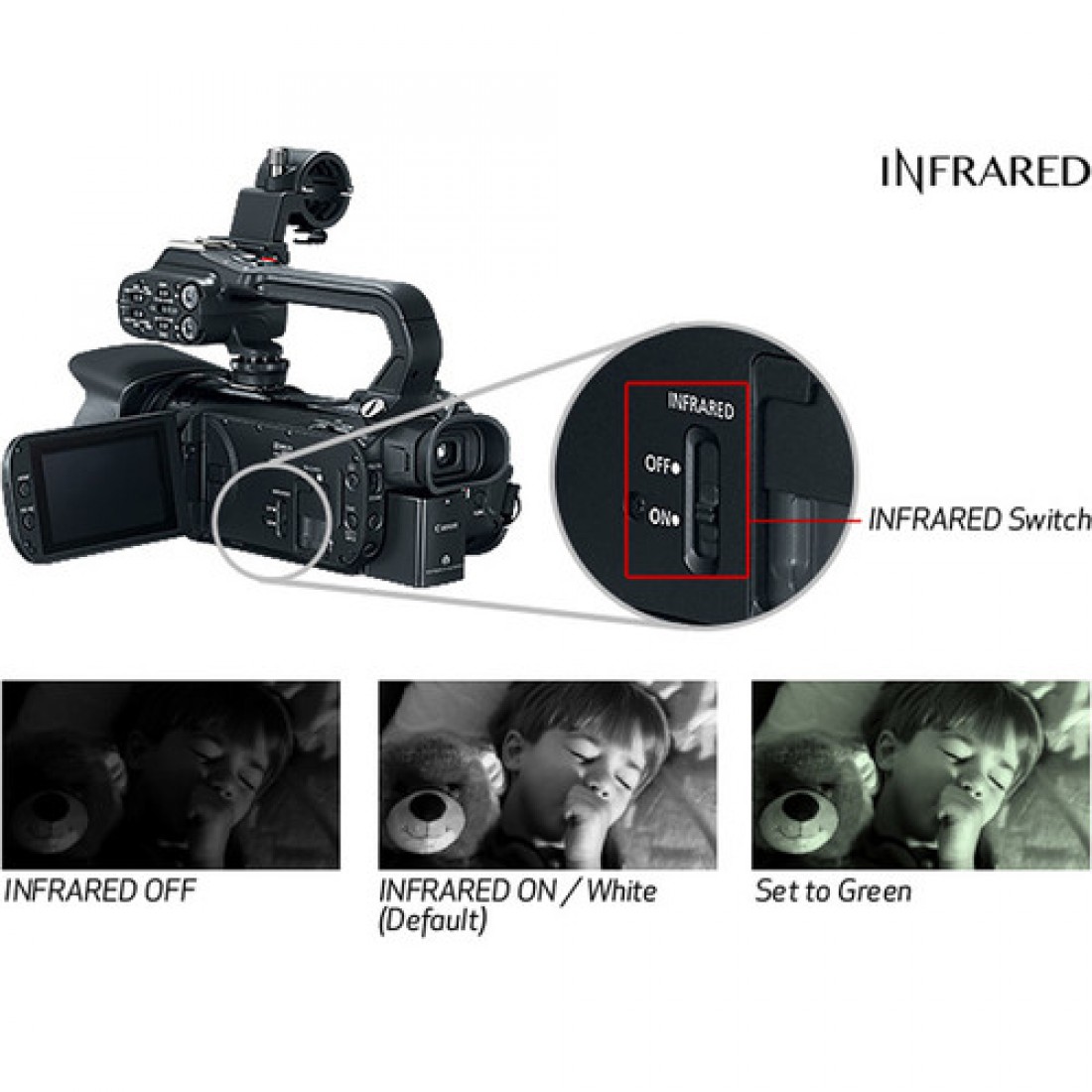

Infrared Shooting Mode

Detachable Top Handle

Intelligent battery system included

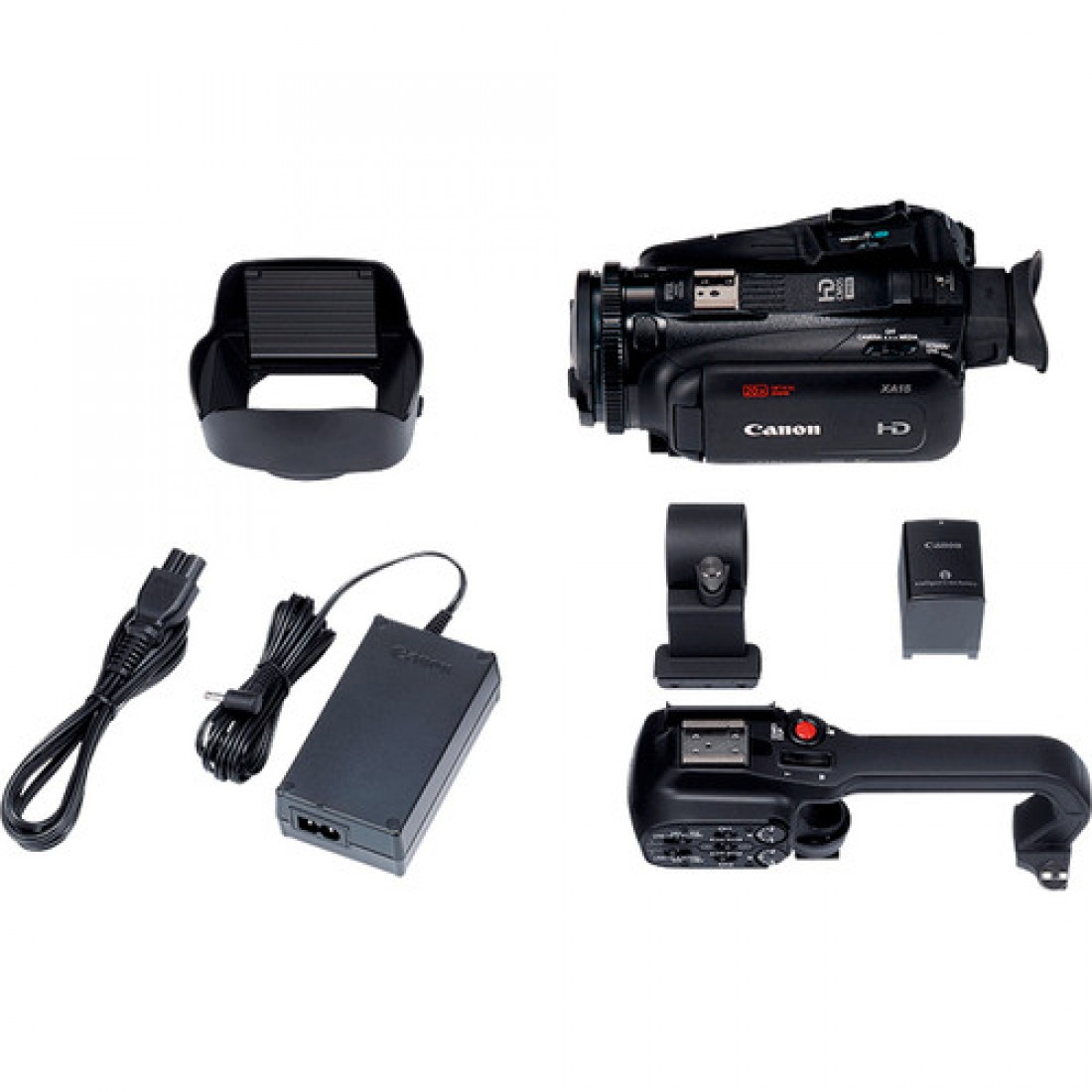

In the box

1 x Canon XA15 Compact Full HD Camcorder with SDI, HDMI, and Composite Output

1 x Canon CA-570 Compact AC Power Adapter

1 x Mic Holder (with Mounting Screw)

1 x Handle Unit

1 x Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh)

1 x Lens Hood
