AVMATRIX SD1191 1-9 3G-SDI Distribution Amplifier
KSh23,700.00
Distribution amplifier

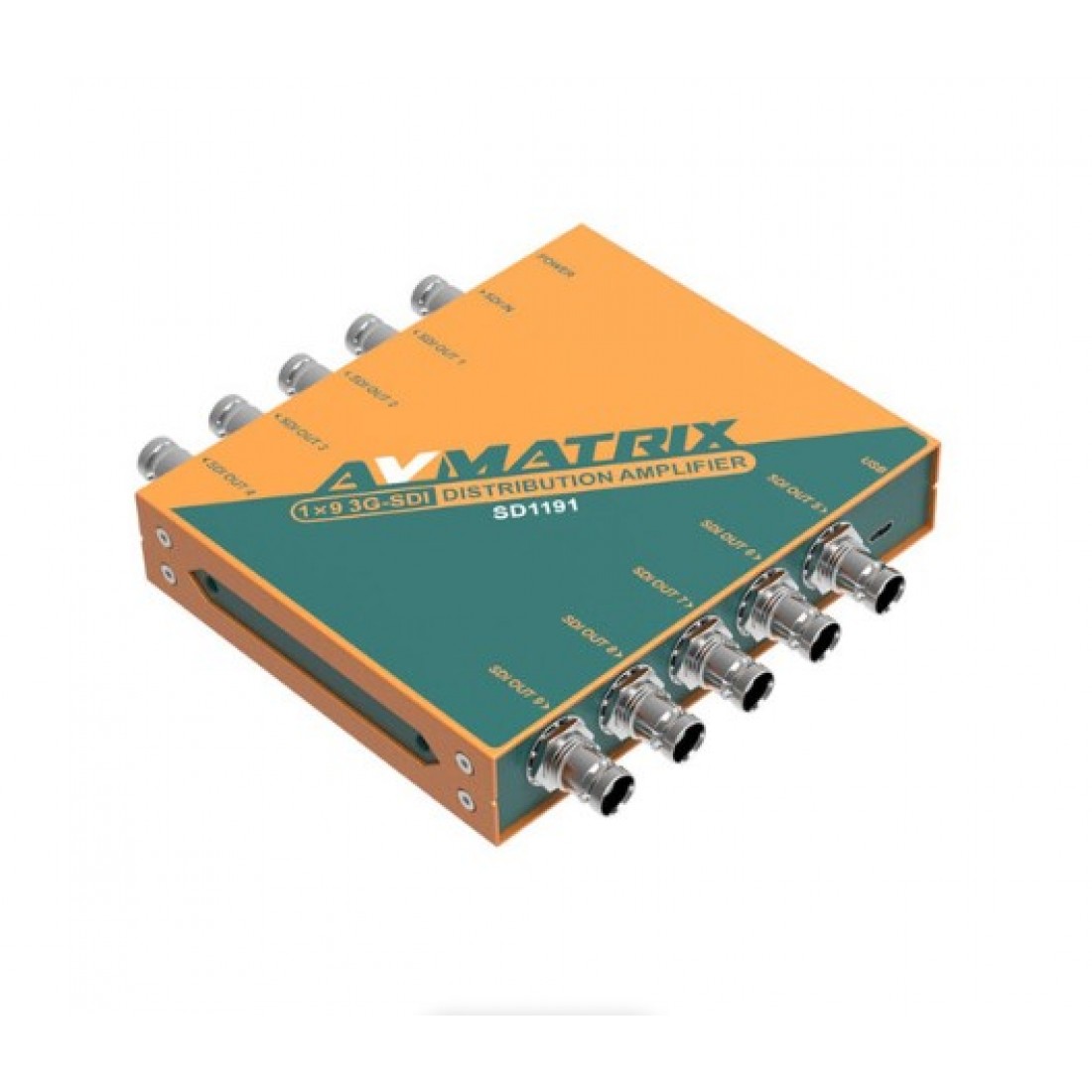

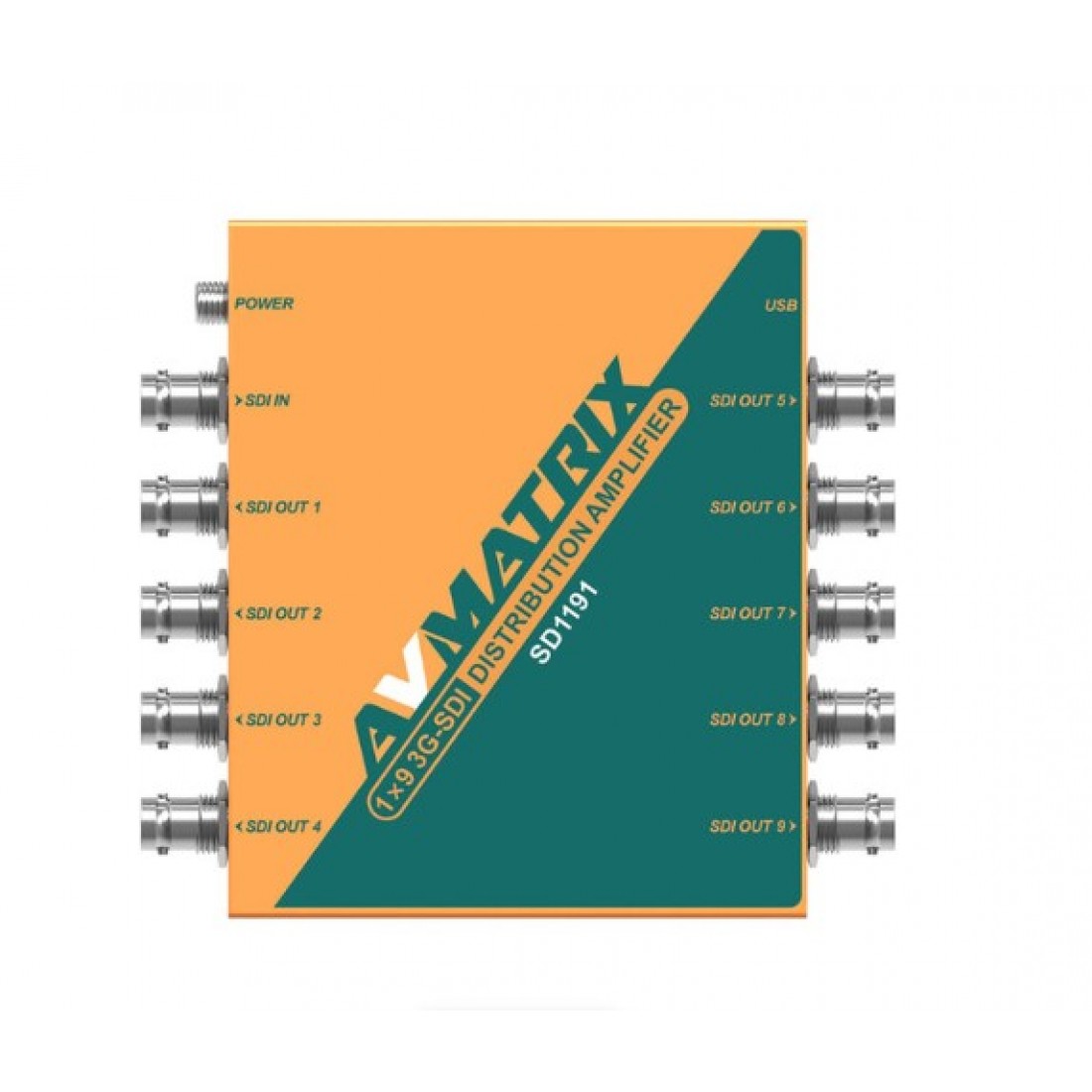

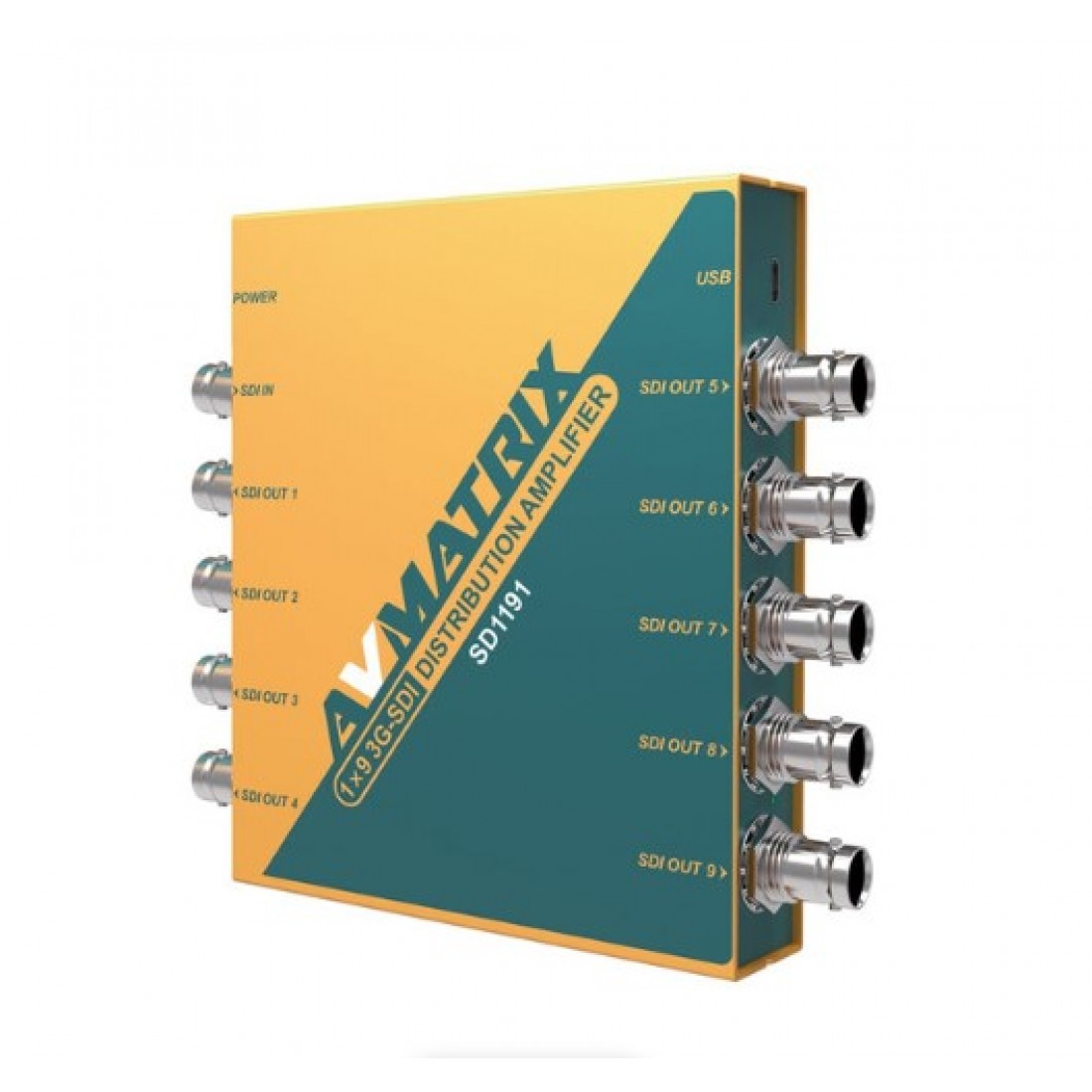

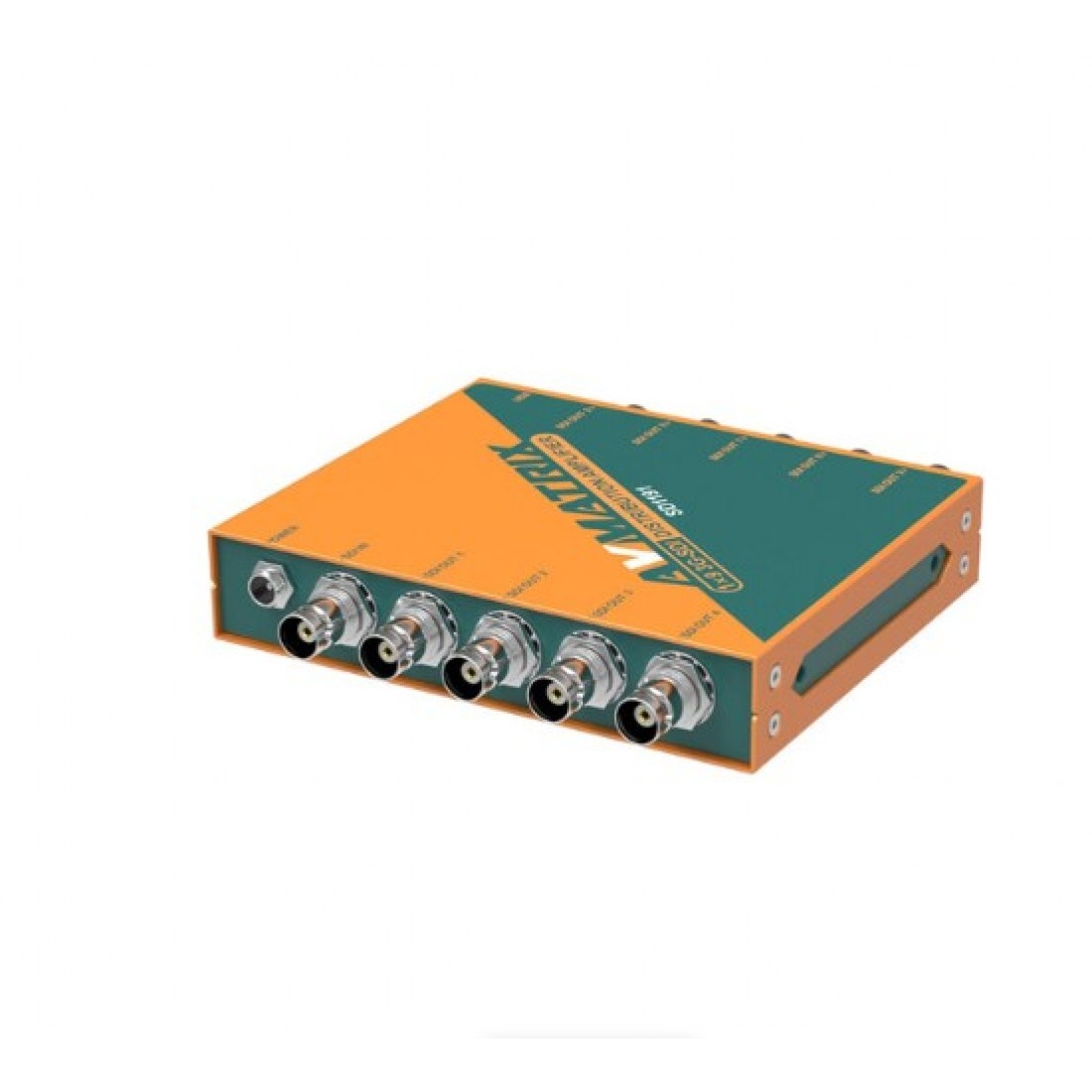

AVMATRIX SD1191 1-9 3G-SDI Distribution Amplifier
Product Highlights
- Auto-Detects up to 1080p60 SDI Input
- 9 x Buffered and Reclocked Outputs
- 3G-SDI Cable Lengths up to 394′
- RGB 4:4:4 & YUV 4:2:2/4:4:4 10-/12-Bit
- Ancillary Data Passed to the Outputs
- DVB-ASI Compatibility
- Locking Power Supply

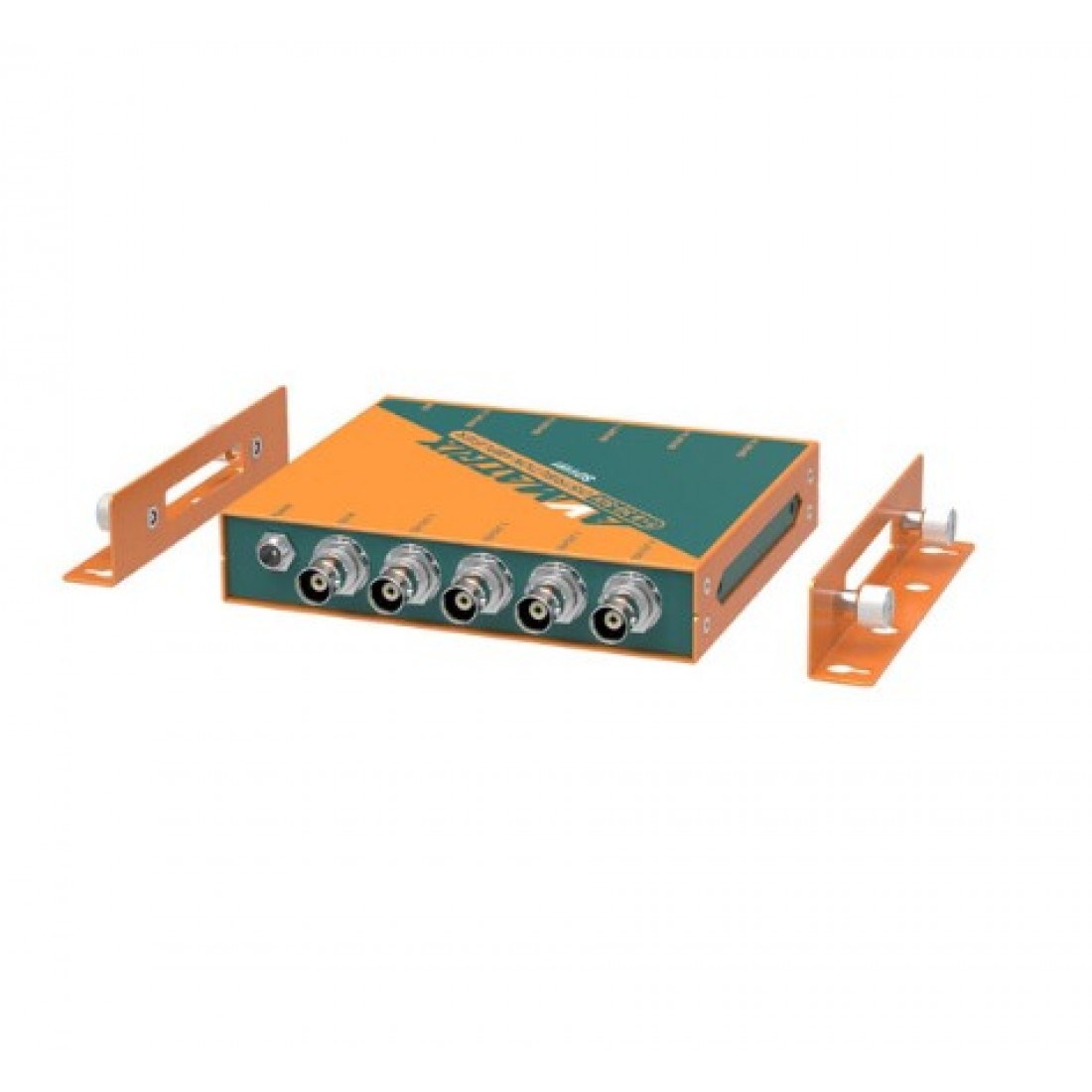

- Mounting Ears Included
Overview
This is a compact, one input, nine output distriution amplifier for SDI and multi-rate SDI video signals. It features an automatic reclocking and equalization techniques that enables SDI cable distance up to SD: 400m, HD: 200m, 3G: 120m. It is also an ASI distributor amplifier that all input and outputs are compatible with ASI signal.
Specifications
- 3G/HD/SD-SDI input and 9 buffered and reclocked outputs
- Supports DVB-ASI signals
- RGB 4:4:4 10-bit/12-bit
- YUV 4:2:2/4:4:4 10-bit/12-bit
- Automatic cable equalization and signal retiming
- All ancillary data is passed to the outputs
- LED indicators for power and signal lock
- Threaded locking power connector
In the Box
- 1 x AVMATRIX 1×9 3G-SDI Reclocking Distribution Amplifier
- 1 x Locking Power Supply
- 1 x 2 x Mounting Ear
