PVC INSULATED COPPER ARMOURED 240MM² CABLES

WSG-19404

PVC INSULATED COPPER ARMOURED 240MM² CABLES

DESCRIPTION:

Ref. 6944X

Standard: BS 6346, KS 04-194.

Voltage rating: 600/1000V.

Application: Electricity supply and industrial wiring for remote control and telemetry circuits etc. Suitable; laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.

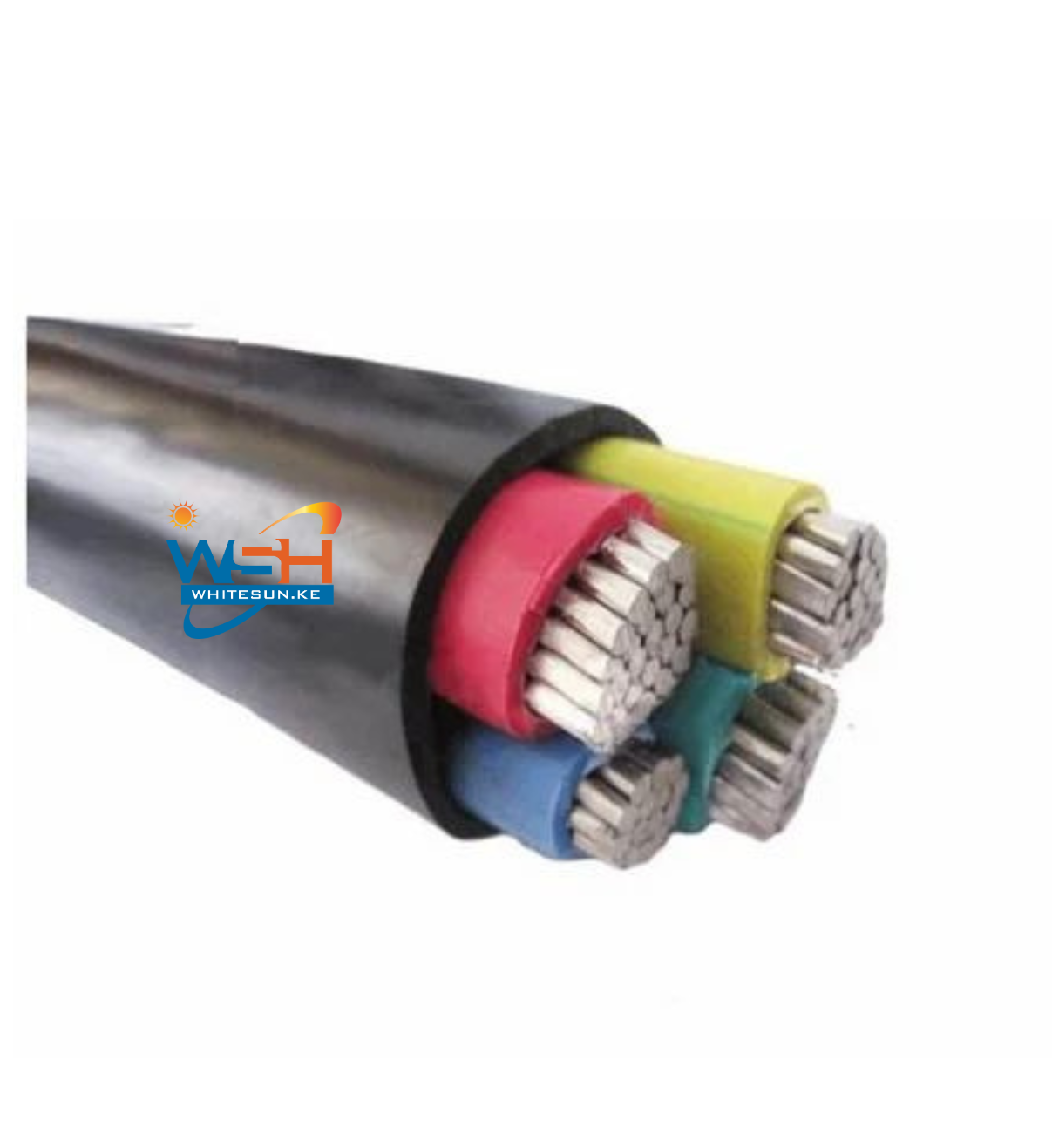

Construction: Multi-core cables. Stranded or solid plain copper conductors, PVC insulated, cores laid up, extruded PVC bedding, galvanized steel wire armoured and PVC sheathed.

Core colours:

Single core: Red or Black

Two core: Red and Black

Three core: Red, Yellow and Blue

Four core: Red, Yellow, Blue and Black

Five core: Red, Yellow, Blue, Black, Green/Yellow

Sheath colour: Black.

Other colours available to order.

Maximum conductor temperature: 70°c

Please note that the below price is per meter.
