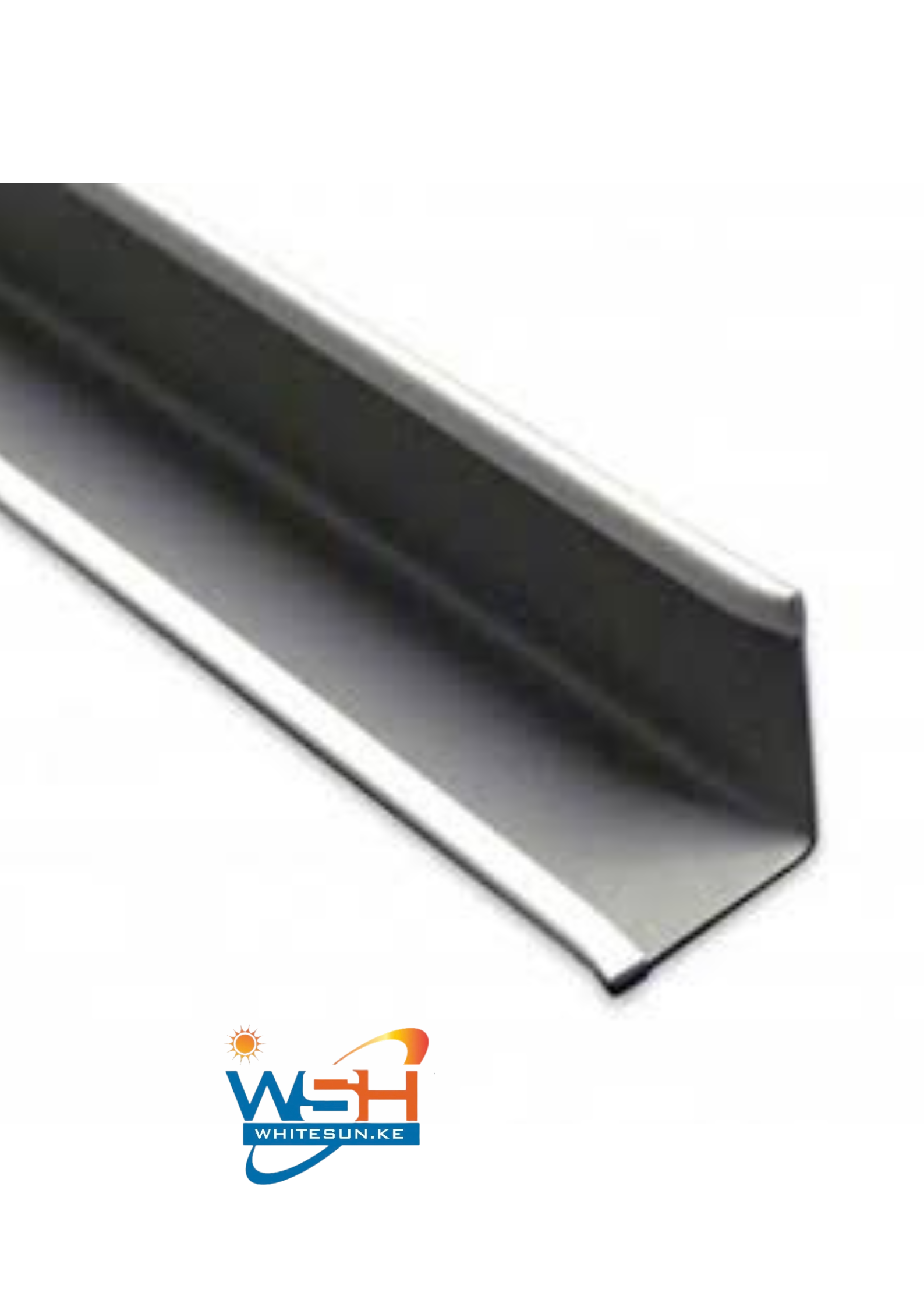

Wall Angle 3000mm – Acoustic Ceiling Grid

Wall Angle 3000mm – Acoustic Ceiling Grid

Description:

We supply high quality wall angle and tee grid for ceiling tile suspension. Our grid system Is sourced from reputable manufacturers like Armstrong, AMF and others. They are fire rated, easy to hung and come in white color to complement the standard color for acoustic ceiling tiles. Together with ceiling tiles, they offer excellent acoustic and aesthetic benefits. The suspended grid system are designed to handle ceiling tiles of sizes 600x600mm and 600x1200mm

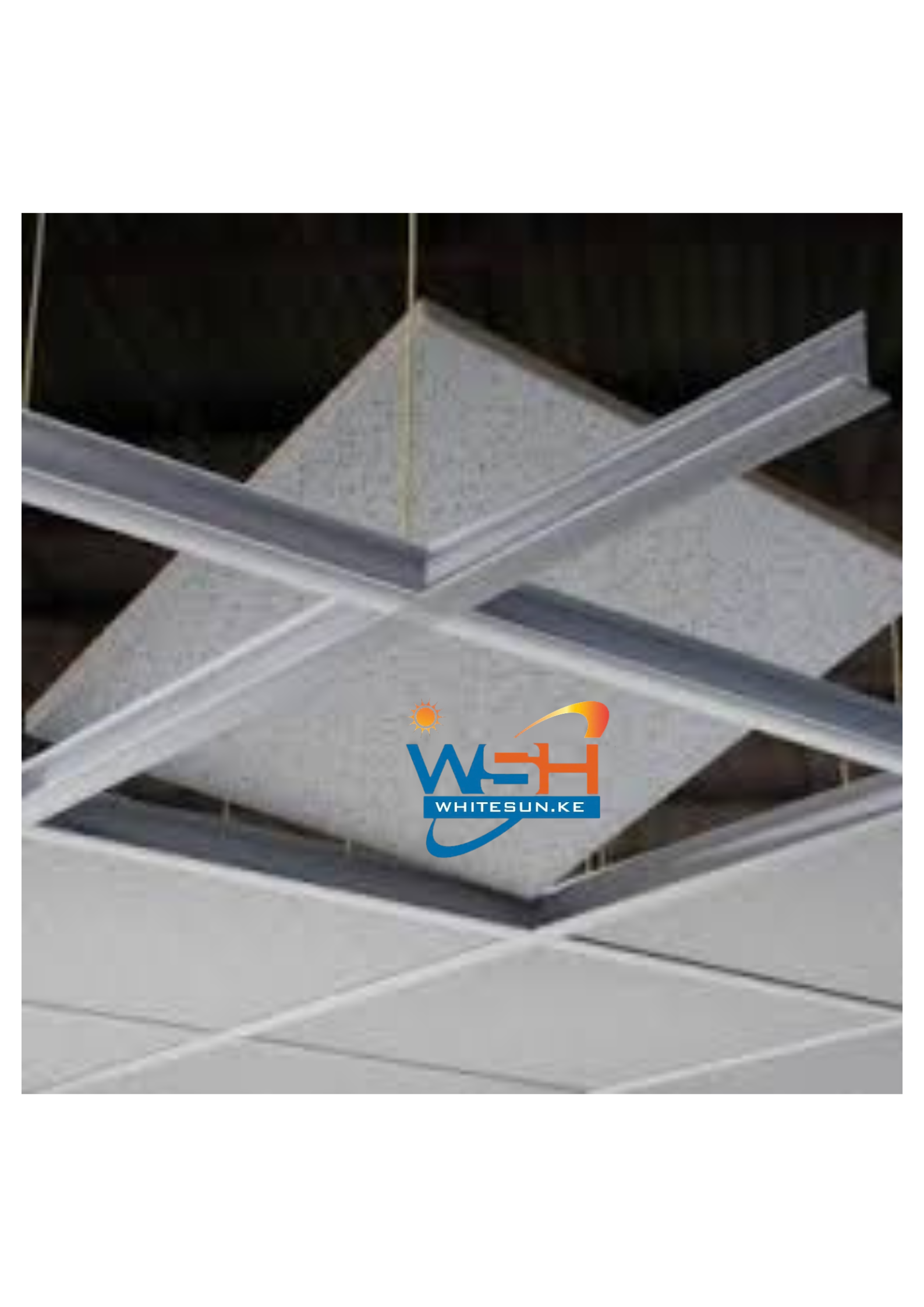

Installing the suspended ceiling grid system is very easy. The continuous main runner T shapes (3600mm) are suspended from the structure above by galvanized binding wires. Then, Short Tees (600mm) and medium Tees (1200mm) profiles connect to the main runner Tee shapes to make a firmly fixed framing of either 600600mm or 6001200mm depending with ceiling tile size. Wall angles which are L shaped are attached to the walls around the edge of the room. Finally, ceiling tiles are dropped into the grid to finish the ceiling.

We have two common trims used to hold ceiling Tee grid at the walls. The standard shape is the Wall Angle. Also available is a Shadow Molding, which creates a shadow line along the edge of the room.
